NFA31GD1001014D - muRata

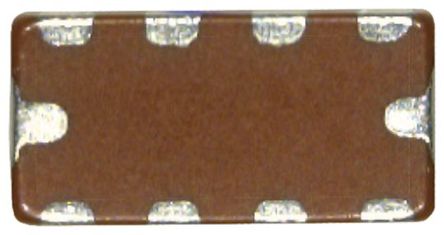

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NFA31GD1001014D
Manufacturer

muRata
ChipWorker Part#

CW79785926
Category

RFI Shielding
Package

1206
Description

RC EMI Filter 1st Order Low Pass 4Channel R = 100Ω, C = 10pF 15mA 1206 (3216 Metric), Array, 10 PC Pad
Documentation

Datasheet

NFA31GD1001014D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NFA31GD1001014D Specifications

Attribute	Attribute Value

Part Number	NFA31GD1001014D
Manufacturer	muRata
ChipWorker Part#	CW79785926
Category	RFI Shielding
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package (SI)	3216
Case/Package	1206
Capacitance	10 pF
Number of Channels	4 Channel
Shielding	No
Current Rating (Max)	0.015 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	6 VDC
Voltage Rating	6 V
Resistance (DC Max)	100 Ω
	expand all
Size-Length	3.2 mm
Size-Width	1.6 mm
Size-Height	0.8 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Obsolete
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

* NFA31G is a 4-circuit noise filter in 3.2x1.6mm size with 0.8mm pitch. High density mounting is available. * 3-terminal structure enables excellent high frequency performance. * Distributed constant circuit realizes smooth change of impedance which prevents reflection of signal and distortion of wave shape. * NFA31G series is effective in lines where ground is not stable, because the resistance element in the filter absorbs noise and returns it to ground line
