NUD3105D - ON Semiconductor

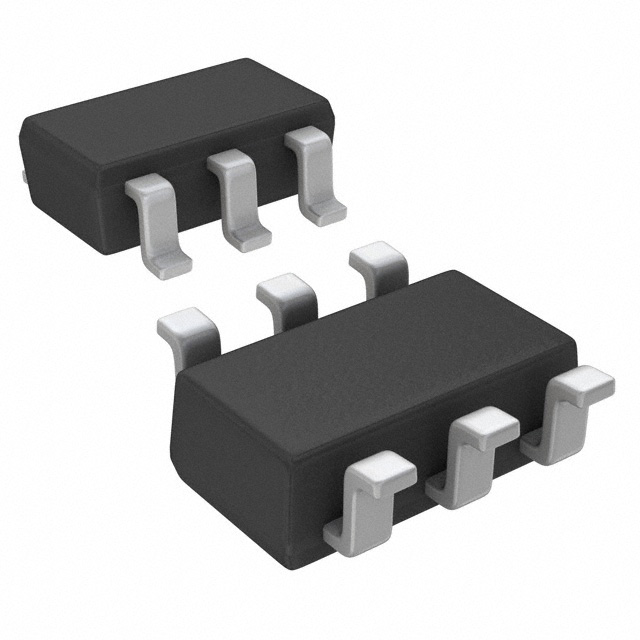

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NUD3105D
Manufacturer

ON Semiconductor
ChipWorker Part#

CW361594075
RoHS

Lead free / RoHS Compliant
Description

5V Relay Driver Socket
Documentation

Datasheet

NUD3105D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NUD3105D Specifications

Attribute	Attribute Value

Part Number	NUD3105D
Manufacturer	ON Semiconductor
ChipWorker Part#	CW361594075
Documentation	Datasheet
	expand all
RoHS	RoHS Compliant

Product Description

This device is used to switch inductive loads such as relays, solenoids incandescent lamps and small DC motors without the need of a free¿wheeling diode. The device integrates all necessary items such as the MOSFET switch, ESD protection, and Zener clamps. It accepts logic level inputs thus allowing it to be driven by a large variety of devices including logic gates, inverters and microcontrollers.
Features
---
|
Provides a Robust Driver Interface between D.C. Relay Coil and Sensitive Logic Circuits
Optimized to Switch Relays from 3.0 V to 5.0 V Rail
Capable of Driving Relay Coils rated up to 2.5 W at 5.0 V
Internal Zener Eliminates the Need of Free-Wheeling Diode
Internal Zener Clamp Routes Induced Current to Ground for Quieter Systems Operation
Low VDS(on) Reduces System Current Drain
