OP97FSZ ,Operational Amplifier, OP Amp IC - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

235 points

Part No

OP97FSZ
Manufacturer

ADI
ChipWorker Part#

CW382382
Category

Operational Amplifier, OP Amp IC
Package

SOIC-8
Description

ANALOG DEVICES OP97FSZ Operational Amplifier, Single, 1 Amplifier, 800kHz, 0.2V/µs, ± 2V to ± 20V, SOIC, 8Pins
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 3.3

Buy OP97FSZ

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

OP97FSZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

OP97FSZ Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	OP97FSZ
Manufacturer	ADI
ChipWorker Part#	CW382382
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	15.0 V
Supply Current	380 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	132 dB
Bandwidth	800 kHz
Slew Rate	200 mV/μs
Gain Bandwidth Product	800 kHz
Input Impedance	25.0 GΩ
Input Offset Voltage	30 µV
Input Bias Current	30 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	900 kHz
Minimum CMRR Range	110 dB
Supply Voltage (Max)	20 V
Supply Voltage (Min)	2 V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

Similar products

Product Description

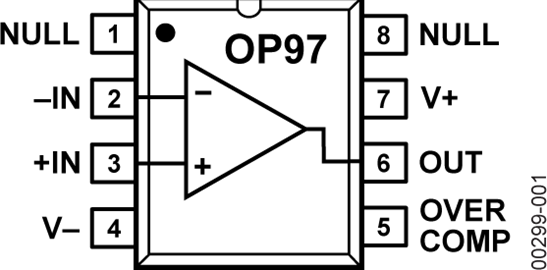

The OP97FSZ is a Low Power High Precision Operational Amplifier that utilizes only 600µA supply current, less than 1/6 that of an OP07. Offset voltage is an ultralow 25µV and drift over-temperature is below 0.6µV/°C. External offset trimming is not required in the majority of circuits. It is ideal for use in precision long-term integrators or sample-and-hold circuits that must operate at elevated temperatures. Common-mode rejection and power supply rejection are also improved with the OP97, at 114dB minimum over wider ranges of common-mode or supply voltage. Outstanding PSR, a supply range specified from ±2.25 to ±20V and the minimal power requirements of the OP97 combine to make it a preferred device for portable and battery-powered instruments. The OP97 conforms to the OP07 pinout, with the null potentiometer connected between Pin 1 and Pin 8 with the wiper to V+.
Low supply current (600µA maximum)
Very low bias current
High common-mode rejection (114dB minimum)
ESD sensitive device, take proper precaution while handling the device.
