PGB0010603MR - Littelfuse

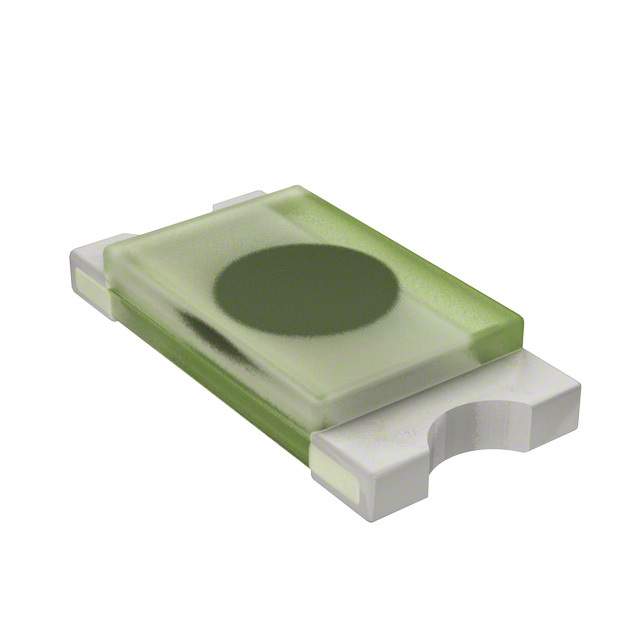

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

PGB0010603MR
Manufacturer

Littelfuse
ChipWorker Part#

CW76138614
Category

TVS Diode
Package

0603
Description

PGB Series 150V 0.12pF Bi-Directional 0603 SMT PulseGuard® ESD Suppressor
Documentation

Datasheet

PGB0010603MR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

PGB0010603MR Specifications

Attribute	Attribute Value

Part Number	PGB0010603MR
Manufacturer	Littelfuse
ChipWorker Part#	CW76138614
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	1608
Case/Package	0603
Voltage Rating (DC)	24.0 V
Operating Voltage	24 V
Capacitance	0.055 pF
Breakdown Voltage	1.00 kV
Clamping Voltage	150 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-65 ℃
	expand all
Size-Length	1.60 mm
Size-Width	810 µm
Size-Height	457 µm
Operating Temperature	-65℃ ~ 125℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Tape & Reel (TR)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

PGB Series 0603 Surface Mount ESD Suppressor；Features • PGB Series 0603 Surface Mount ESD Suppressor • Ultra-low capacitance • Low leakage current • Fast response time • Single line of protection • Bi-directional • Withstands multiple ESD strikes • Standard EIA SOCM-1608 package • Compatible with pick-and-place processes • Available in 1,000 and 5,000 piece reels (EIA-RS481)
