PL-USB-BLASTER-RCN ,Active Chip - Altera

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

101 points

Part No

PL-USB-BLASTER-RCN
Manufacturer

Altera
ChipWorker Part#

CW24338566
Category

Active Chip
Description

CABLE PROGRAMMING USB
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 280.39

Buy PL-USB-BLASTER-RCN

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

PL-USB-BLASTER-RCN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

PL-USB-BLASTER-RCN Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	PL-USB-BLASTER-RCN
Manufacturer	Altera
ChipWorker Part#	CW24338566
Category	Active Chip
Documentation	Datasheet
Core Architecture	FPGA
	expand all
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

Similar products

2305B-1PGGI

Integrated Device Technology

Product Description

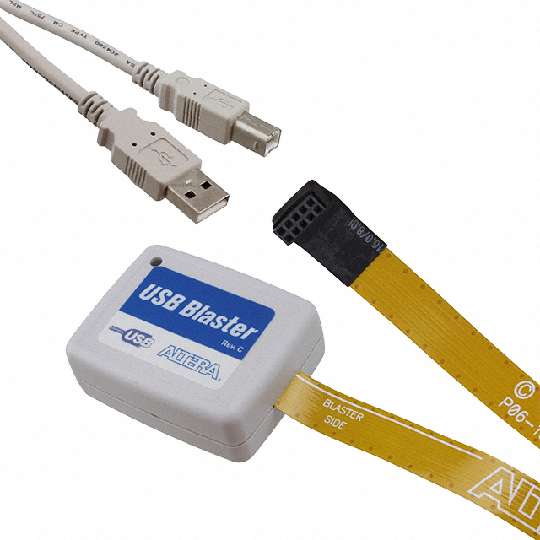

The PL-USB-BLASTER-RCN is a USB-Blaster download cable. This cable interfaces a USB port on a host computer to FPGA mounted on a printed circuit board. The cable sends configuration data from the PC to a standard 10 pin header connected to the FPGA. We can use the USB-Blaster cable to iteratively download configuration data to a system during prototyping or to program data into the system during production. The USB-Blaster download cable supports Stratix, Cyclon, Arria GX, APEX, ACEX 1K, Mercury, FLEX 10K, Excalibur series FPGA"s and MAX series CPLDs. The USB-Blaster download cable supports target systems using 5.0V TTL, 3.3V LVTTL/LVCMOS and single ended I/O standards from 1.5V to 3.3V. This download cable is only available for Windows 2000, Windows XP (32bit and 64bit), Windows Vista (32bit and 64bit), UNIX and all Linux platforms such as Red Hat Enterprise 4, Red Hat Enterprise 5, CentOS 4/5 and SUSE Linux Enterprise 9.
It can perform ISP of EPC2, EPC4, EPC8, EPC16, EPCS1, EPCS4, EPCS16, EPCS64 and EPCS128 devices
Perform SignalTap II logic analysis
Supports the joint test action group (JTAG), passive serial programming and active serial modes
Requires 5.0V from the USB cable and between 1.5V and 5.0V from the target circuit board
To avoid damaging, first unplug cable from 10 pin header on target board before unplugging cable from the USB port on PC. It is safest to remove power first from the board before unplugging the cable.
