Q4015LT ,TRIAC Diode, TRIAC - Littelfuse

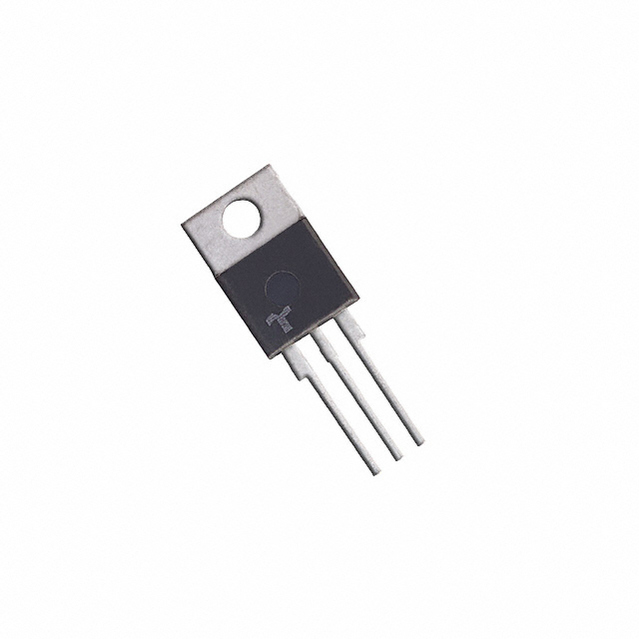

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

94 points

Part No

Q4015LT
Manufacturer

Littelfuse
ChipWorker Part#

CW52180267
Category

TRIAC Diode, TRIAC
Package

TO-220-3
Description

Thyristor TRIAC 400V 200A 3Pin(3+Tab) TO-220AB Isolated
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 1.37

Buy Q4015LT

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

Q4015LT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

Q4015LT Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	Q4015LT
Manufacturer	Littelfuse
ChipWorker Part#	CW52180267
Category	TRIAC Diode, TRIAC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	400 V
Current Rating	15.0 A
Number of Positions	3 Position
Holding Current	70.0 mA
Holding Current (Max)	70 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature	-40℃ ~ 125℃
	expand all
Size-Height	9.4 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17

Similar & Replacement Parts

Similar products

Product Description

General Description
Teccor’s Quadrac devices are triacs that include a diac trigger mounted inside the same package. This device, developed by Teccor, saves the user the expense and assembly time of buying a discrete diac and assembling in conjunction with a gated triac. Also, the alternistor Quadrac device (QxxxxLTH) eliminates the need for a snubber network.
The Quadrac device is a bidirectional AC switch and is gate controlled for either polarity of main terminal voltage. Its primary purpose is for AC switching and phase control applications such as speed controls, temperature modulation controls, and lighting controls where noise immunity is required.
Features
• RoHS Compliant
• Glass-passivated junctions
• Electrically-isolated package
• Internal trigger diac
• High surge capability — up to 200 A
• High voltage capability — 200 V to 600 V
