Q6F1BXXG12E - Apem Components

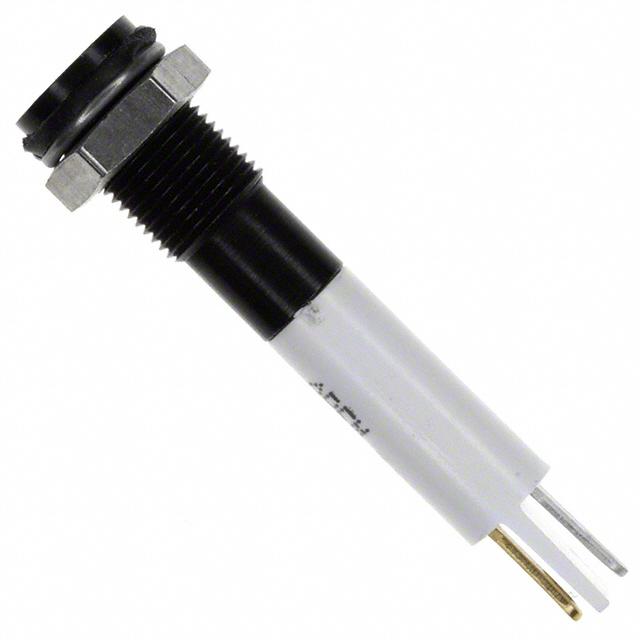

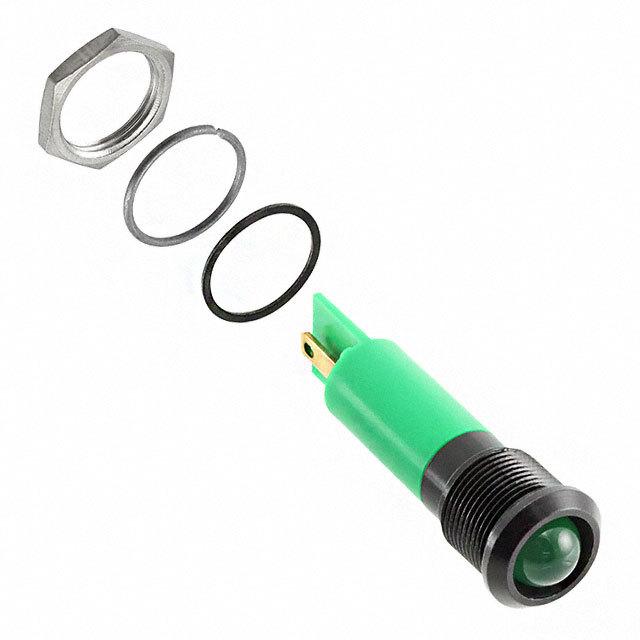

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

Q6F1BXXG12E
Manufacturer

Apem Components
ChipWorker Part#

CW36126129
Category

Indicator Light
Description

APEM Q6F1BXXG12E LED Panel Mount Indicator, Green, 12VDC, 6mm, 20mA, 8mcd, IP67
Documentation

Datasheet

Q6F1BXXG12E Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

Q6F1BXXG12E Specifications

Attribute	Attribute Value

Part Number	Q6F1BXXG12E
Manufacturer	Apem Components
ChipWorker Part#	CW36126129
Category	Indicator Light
Documentation	Datasheet
Mounting Style	Quick Connect, Solder
Number of Pins	2 Pin
Supply Voltage (DC)	12.0 V
Operating Voltage	12 VDC
Forward Voltage	2.2 V
Luminous Intensity	8 mcd
Viewing Angle	100°
Forward Current	20 mA
Forward Current (Max)	20 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	12 VDC
	expand all
Color	Green
Lens Color	Green
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8541402000
ECCN Code	EAR99

Product Description

APEM switches now offers a NEW expanded range of panel mounting LED indicators. The range has seven different mounting hole sizes, three different bezel styles manufactured from high quality brass and ABS. Both bezel materials are available plated
in Bright Chrome, Black Chrome, Satin Chrome and Gold. A wide range of terminations are available and IP67 sealing can be achieved as an option. The LED"s are available in 5 different colors, plus bi-color. tri-color and flashing LED"s. A complementary
range of super bright, water clear LED"s are also available. The indicators are available with integral resistors to permit direct connection to 6V, 12V, 24V, 28V, 110V, and 220V systems. Other voltages are available upon request. In addition APEM has
designed and developed an extensive range of LED based lamps.
* 6mm panel mounting LED indicator
* 3mm coloured diffused epoxy lens or 3mm water clear super bright LEDs
* Bright chrome, black chrome or satin grey bezel finish
* Prominent, recessed and flush bezel styles
* 2VDC - 28VDC
* (2.0 x 0.5) terminals, pins or (200mm long) wire terminations
* IP67 sealing option (EN60529)
* Supplied with fixing nut and spring washer
