RHRG30120 - Fairchild

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

RHRG30120
Manufacturer

Fairchild
ChipWorker Part#

CW4059729
Category

TVS Diode
Package

TO-247-2
Description

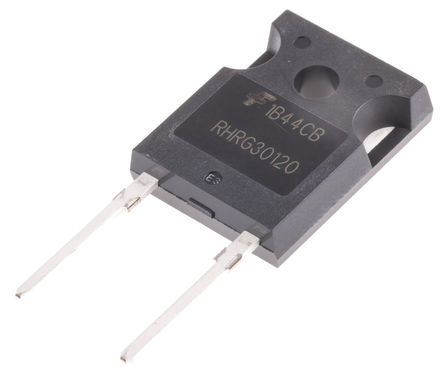

RHRG30120 30A 1200V 65ns Through Hole Hyperfast Diode - TO-247-2
Documentation

Datasheet

RHRG30120 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

RHRG30120 Specifications

Attribute	Attribute Value

Part Number	RHRG30120
Manufacturer	Fairchild
ChipWorker Part#	CW4059729
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-247-2
Voltage Rating (DC)	1.20 kV
Current Rating	30.0 A
Output Current	≤30.0 A
Forward Voltage	3.2 V
Polarity	Standard
Thermal Resistance	1.2℃/W (RθJC)
Reverse recovery time	85 ns
Forward Current	30 A
Max Forward Surge Current (Ifsm)	300 A
Maximum Forward Voltage (Max)	3.2 V
Forward Current (Max)	30 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	175 ℃
	expand all
Size-Length	15.8 mm
Size-Width	4.82 mm
Size-Height	20.8 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The RHRG30120 is a Hyperfast Diode with soft recovery characteristics. It has the half recovery time of ultrafast diodes and is silicon nitride passivated ion-implanted epitaxial planar construction. This device is intended to be used as freewheeling/clamping diodes and diodes in a variety of switching power supplies and other power switching applications. Their low stored charge and hyperfast soft recovery minimize ringing and electrical noise in many power switching circuits reducing power loss in the switching transistors.
