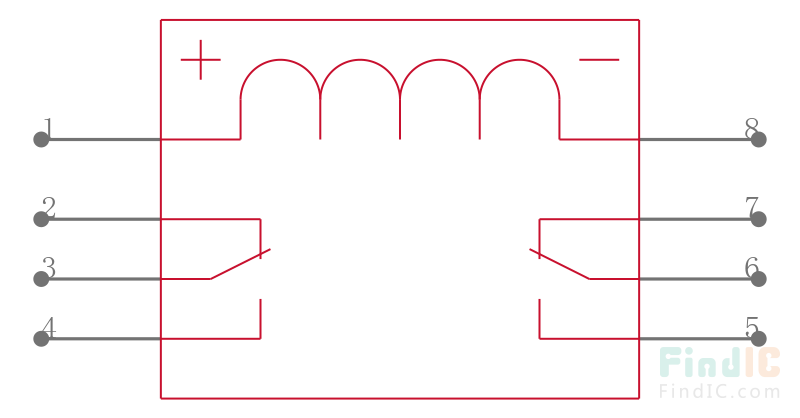

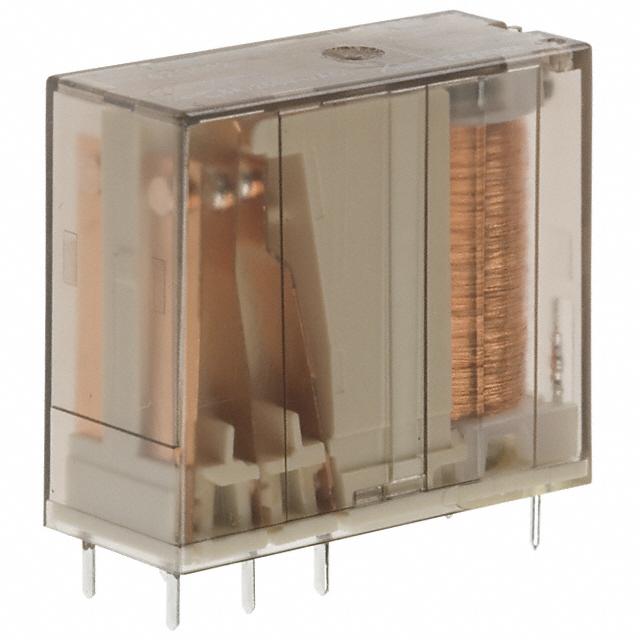

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

RP420012
Manufacturer

TE Connectivity
ChipWorker Part#

CW38879771
Category

Power Relay
Description

Power Relay 12VDC 14A DPDT (( 29mm 12.6mm 25.5mm)) Through Hole
Documentation

Datasheet

RP420012 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

RP420012 Specifications

Attribute	Attribute Value

Part Number	RP420012
Manufacturer	TE Connectivity
ChipWorker Part#	CW38879771
Category	Power Relay
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Voltage Rating (AC)	400 V
Current Rating	16 A
Input Voltage (DC)	12.0 V
Contacts Type	DPDT
Power Consumption	500 mW
voltage rating	1.20 V
Contact Current Rating	14 A
Coil Voltage	12 VDC
Coil Current	44.4 mA
Coil Power (DC)	500 mW
Coil Resistance	270 Ω
Carry Current	8.00 A
Current Rating (Max)	14 A
Coil Voltage (DC)	12 V
Input Power (Max)	2 KVA
Switching Current (Max)	14 A
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	29 mm
Size-Width	12.6 mm
Size-Height	25.5 mm
Contact Material	Silver Cadmium Oxide
Operating Temperature	-40℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Non-Compliant
HTS Code	8536490075;8536410050
ECCN Code	EAR99

Product Description

The RP420012 is a 2-pole general-purpose Power PCB Relay with DC coil, RPII/2 series. 2 form-C (1CO) contact configuration, AgCdO2 contact. 8A, flux-proof. 4kV/8mm coil-contact.
