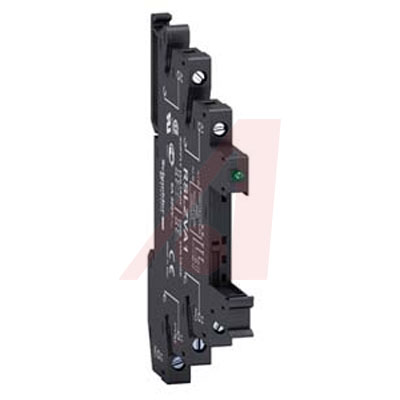

RSLZVA1 - Schneider Electric

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

RSLZVA1
Manufacturer

Schneider Electric
ChipWorker Part#

CW91245014
Category

Socket Adapter
Description

Relay Socket; Screw; Flat Pin; DIN Mnt; forRSL Relays w/1 C/O Cntct, 12/24VDC Ctrl
Documentation

Datasheet

RSLZVA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

RSLZVA1 Specifications

Attribute	Attribute Value

Part Number	RSLZVA1
Manufacturer	Schneider Electric
ChipWorker Part#	CW91245014
Category	Socket Adapter
Documentation	Datasheet
Mounting Style	DIN Rail
Number of Pins	5 Pin
Voltage Rating (AC)	300 V
Current Rating	6 A
Number of Positions	5 Position
Voltage Rating	300 VAC
	expand all
Packaging	Bulk
RoHS	Non-Compliant

Product Description

The RSLZVA1 is a Screw Socket equipped with LED and protection circuit. Plastic compression spring mounting on 35mm symmetrical DIN rail. It is suitable for use with 12 to 24VAC/DC RSL series plug-in relay.
Flat pin
IP20 Protection rating
