S25FL128P0XMFI003 - Spansion

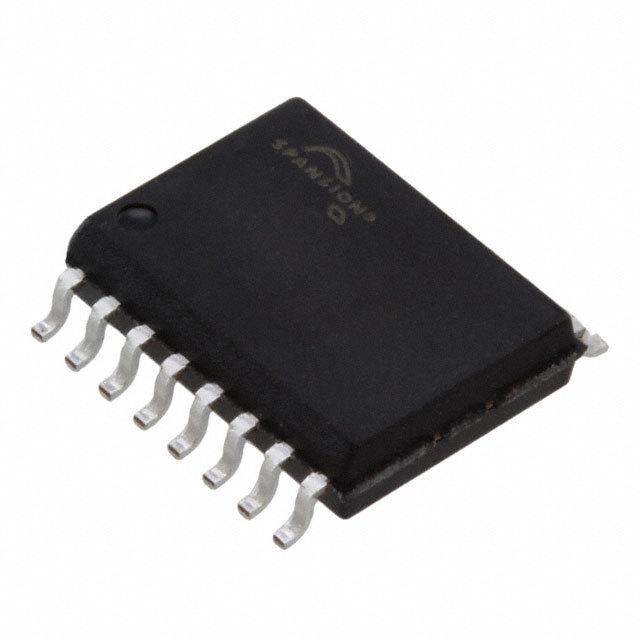

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

S25FL128P0XMFI003
Manufacturer

Spansion
ChipWorker Part#

CW140999538
Category

Flash Memory, Flash
Package

SO-16
Description

Flash Memory 128M CMOS 3V/104MHz Serial NOR Flash
Documentation

Datasheet

S25FL128P0XMFI003 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

S25FL128P0XMFI003 Specifications

Attribute	Attribute Value

Part Number	S25FL128P0XMFI003
Manufacturer	Spansion
ChipWorker Part#	CW140999538
Category	Flash Memory, Flash
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	SO-16
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	40 ℃
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.7 V
	expand all
Operating Temperature	40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HK STC License	NLR

Product Description

General Description
The S25FL128P is a 3.0 Volt (2.7V to 3.6V), single-power-supply Flash memory device. The device consists of 64 sectors of 256 KB memory, or 256 sectors of 64 KB memory.
The device accepts data written to SI (Serial Input) and outputs data on SO (Serial Output). The devices are designed to be programmed in-system with the standard system 3.0 volt VCC supply.
The memory can be programmed 1 to 256 bytes at a time, using the Page Program command. The device supports Sector Erase and Bulk Erase commands.
Distinctive Characteristics
Architectural Advantages
Single power supply operation
– Full voltage range: 2.7V to 3.6V read and program operations
Memory Architecture
– 128Mb uniform 256 KB sector product
– 128Mb uniform 64 KB sector product
Program
– Page Program (up to 256 bytes) in 1.5 ms (typical)
– Faster program time in Accelerated Programming mode(8.5 V–9.5 V on #WP/ACC) in 1.2 ms (typical)
Erase
– 2 s typical 256 KB sector erase time
– 0.5 s typical 64 KB sector erase time
– 128 s typical bulk erase time
– Sector erase (SE) command (D8h) for 256 KB sectors; (20h or D8h) for 64KB sectors
– Bulk erase command (C7h) for 256 KB sectors; (60h or C7h) for 64KB sectors
Cycling Endurance
– 100,000 cycles per sector typical
Data Retention
– 20 years typical
Device ID
– RDID (9Fh), READ_ID (90h) and RES (ABh) commands to read manufacturer and device ID information
– RES command one-byte electronic signature for backward compatibility
Process Technology
– Manufactured on 0.09 µm MirrorBit® process technology
Package Option
– Industry Standard Pinouts
– 16-pin SO package (300 mils)
– 8-Contact WSON Package (6 x 8 mm)
Performance Characteristics
Speed
– 104 MHz clock rate (maximum)
Power Saving Standby Mode
– Deep Power Down Mode 3 µA (typical)
– Standby Mode 200 µA (max)
Memory Protection Features
Memory Protection
– WP#/ACC pin works in conjunction with Status Register Bits to protect specified memory areas
– 256 KB uniform sector product:
Status Register Block Protection bits (BP2, BP1, BP0) in status
register configure parts of memory as read-only.
– 64KB uniform sector product:
Status Register Block Protection bits (BP3, BP2, BP1, BP0) in
status register configure parts of memory as read-only
Software Features
– SPI Bus Compatible Serial Interface
Hardware Features
x8 Parallel Programming Mode (for 16-pin SO package only)

expand all
