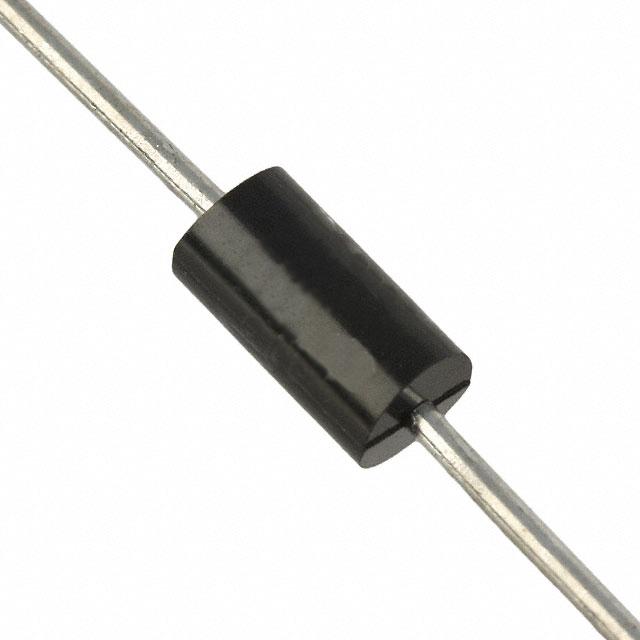

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoSA26A
-
ManufacturerLittelfuse
-
ChipWorker Part#CW59661000
-
CategoryTVS Diode
-
PackageDO-204AC
-
DescriptionTrans Voltage Suppressor Diode, 500W, 26V V(RWM), Unidirectional, 1Element, Silicon, DO-15, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
SA26A Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
SA26A Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | SA26A |
| Manufacturer | Littelfuse |
| ChipWorker Part# | CW59661000 |
| Category | TVS Diode |
| Documentation | Datasheet |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | DO-204AC |
| Voltage Rating (DC) | 26.0 V |
| Power Rating | 500 W |
| Number of Circuits | 1 Circuit |
| Number of Positions | 2 Position |
| Clamping Voltage | 42.1 V |
| Test Current | 1 mA |
| Max Breakdown Voltage | 31.9 V |
| Peak Pulse Power | 500 W |
| Min Breakdown Voltage | 28.9 V |
| Reverse Breakdown Voltage | 28.9 V |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Junction Temperature | -65℃ ~ 175℃ |
| expand all | |
| Size-Length | 7.60 mm |
| Size-Diameter | 3.60 mm |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8541100080 |
Product Description
- The SA Series is designed specifically to protect sensitive electronics equipment from voltage transients induced by lightning and other transient voltage events. These devices are ideal for the protection of I/O interfaces, Vcc bus and other vulnerable circuits used in computer and consumer electronic applications.
- FEATURES
- •RoHS Compliant
- • 5.0 to 180 Volts
- • Uni-directional and Bi-directional
- • Glass passivated chip junction
- • 500W peak pulse power capability on 10/1000µs waveform
- • Excellent clamping capability
- • Repetition rate (duty cycle): 0.01%
- •Low incremental surge resistance
- •Fast response time: typically less than 1.0ps from 0 Volts to BV for unidirectional and 5.0ns for bidirectional types
- •Typical IR less than 1µA above 10V
- •High temperature soldering guaranteed: 265˚C/10 seconds/.375",(9.5mm) lead length, 5lbs.,(2.3kg) tension
