SMF12CT1G - ON Semiconductor

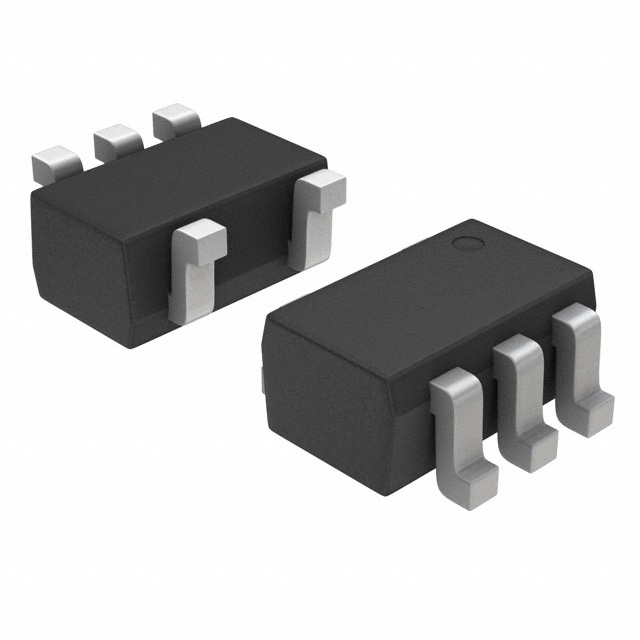

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SMF12CT1G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW3512487
Category

TVS Diode
Package

SC-70-6
Description

ESD Suppressor TVS 12V 6Pin SC-88 T/R
Documentation

Datasheet

SMF12CT1G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SMF12CT1G Specifications

Attribute	Attribute Value

Part Number	SMF12CT1G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW3512487
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-70-6
Voltage Rating (DC)	12.0 V
Power Rating	100 W
Breakdown Voltage	13.3 V
Number of Circuits	5 Circuit
Number of Channels	5 Channel
Number of Positions	6 Position
Power Dissipation	100 W
Clamping Voltage	23 V
Test Current	1 mA
Peak Pulse Power	100 W
Min Breakdown Voltage	13.3 V
Reverse Breakdown Voltage	13.3 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	2.2 mm
Size-Width	1.25 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

5−Line Transient Voltage Suppressor Array
This 5−line voltage transient suppressor array is designed for application requiring transient voltage protection capability. It is intended for use in over−transient voltage and ESD sensitive equipment such as computers, printers, automotive electronics,
networking communication and other applications. This device features a monolithic common anode design which protects five independent lines in a single SC−88 package.
Features
•Protects up to 5−Line in a Single SC−88 Package
•Peak Power Dissipation −100 W (8 x 20 s Waveform)
•ESD Rating of Class 3B (Exceeding 8 kV) per Human Body Model and Class C (Exceeding 400 V) per Machine Model.
•Compliance with IEC 61000−4−2 (ESD) 15 kV (Air), 8 kV (Contact)
•Flammability Rating of UL 94 V−0
•Pb−Free Packages are Available
Applications
•Hand−Held Portable Applications
•Networking and Telecom
•Automotive Electronics
•Serial and Parallel Ports
•Notebooks, Desktops, Servers
