TC4452VPA ,FET Driver - Microchip

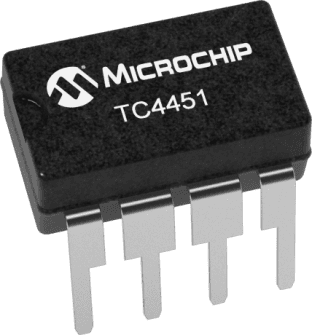

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

91 points

Part No

TC4452VPA
Manufacturer

Microchip
ChipWorker Part#

CW10450600
Category

FET Driver
Package

PDIP-8
Description

MOSFET DRVR 13A 1Out Lo Side Non-Inv 8Pin PDIP Tube
Documentation

Datasheet
Ships from

Moscow
Наличие

318 pcs In Stock
Estimated Price

$ 2.31

Buy TC4452VPA

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

TC4452VPA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

TC4452VPA Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	TC4452VPA
Manufacturer	Microchip
ChipWorker Part#	CW10450600
Category	FET Driver
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Voltage (DC)	4.50V (min)
Operating Voltage	4.5V ~ 18V
Rise/Fall Time	30ns, 32ns
Number of Outputs	1 Output
Output Voltage	18.0 V
Output Current	13 A
Number of Channels	1 Channel
Number of Positions	8 Position
Rise Time	40 ns
Fall Time	40 ns
Fall Time (Max)	40 ns
Fall Time (Max)	40 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	10.16 mm
Size-Width	7.11 mm
Size-Height	4.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The TC4452VPA is a non-inverting high-speed single-output MOSFET Driver capable of driving large MOSFETs and insulated gate bipolar transistors. The TC4451 has matched output rise and fall times, as well as matched leading and falling-edge propagation delay times. The TC4452 device also has very low cross-conduction current, reducing the overall power dissipation of the device. This device is essentially immune to any form of upset, except direct over-voltage or over-dissipation. It cannot be latched under any conditions within its power and voltage ratings. This part is not subject to damage or improper operation when up to 5V of ground bounce is present on its ground terminals. It can accept, without damage or logic upset, more than 1.5A inductive current of either polarity being forced back into its outputs. In addition, all terminals are fully protected against electrostatic discharge up to 4kV and 400V. The TC4451 inputs may be driven directly from either TTL or CMOS.
Low shoot-through/cross-conduction current in output stage
Matched fast rise and fall times
Matched short propagation delays - 44ns Typical
Latch-up protected - Withstands 1.5A output reverse current
Input withstands negative inputs up to 5V
Pin-compatible with the TC4420/TC4429, TC4421/TC4422 and TC4421A/TC4422A MOSFET drivers
