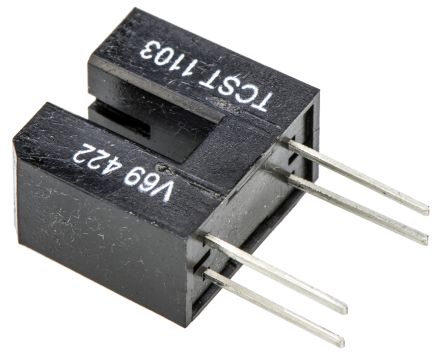

TCST1103 - VISHAY

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TCST1103
Manufacturer

VISHAY
ChipWorker Part#

CW675804
Category

Optical Sensor
RoHS

Lead free / RoHS Compliant
Description

Transmissive Photo Interrupter, Phototransistor, Through Hole, 3.1mm, 1mm, 60mA, 6V
Documentation

Datasheet

TCST1103 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TCST1103 Specifications

Attribute	Attribute Value

Part Number	TCST1103
Manufacturer	VISHAY
ChipWorker Part#	CW675804
Category	Optical Sensor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	Lead-4
Voltage Rating (DC)	1.25 V
Output Voltage	70.0 V
Output Current	100 mA
Number of Channels	1 Channel
Number of Positions	4 Position
Forward Voltage	1.25 V
Wavelength	950 nm
Input Current	60.0 mA
Peak Wavelength	950 nm
Power Dissipation	250 mW
Rise Time	10 µs
Breakdown Voltage (Collector to Emitter)	70 V
Forward Current	60 mA
Reverse Breakdown Voltage	6 V
Forward Current (Max)	60 mA
Fall Time	8 µs
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	250 mW
	expand all
Size-Length	11.9 mm
Size-Width	6.3 mm
Size-Height	11.1 mm
Operating Temperature	-55℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Product Description

The TCST1103 is a Transmissive Optical Sensors that include an infrared emitter and phototransistor, located face-to-face on the optical axes in a leaded package which blocks visible light.
