TIP42G - ON Semiconductor

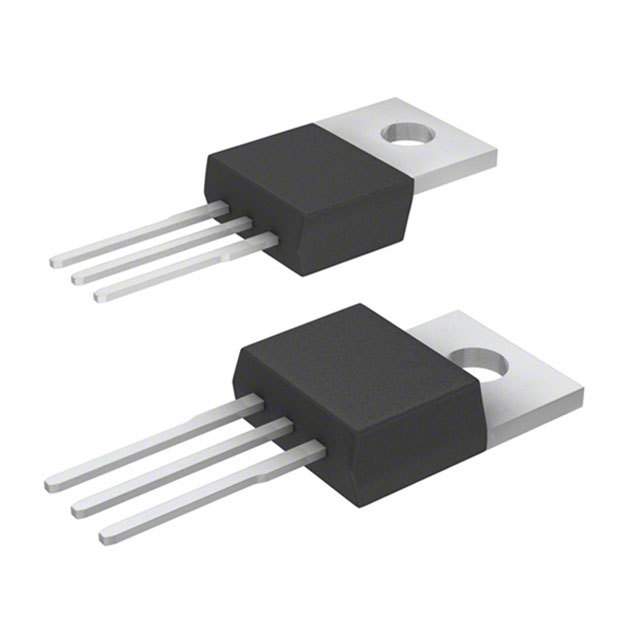

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TIP42G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW21272267
Category

BJT Transistor, BJT
Package

TO-220-3
Description

TO-220AB PNP 40V 6A
Documentation

Datasheet

TIP42G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TIP42G Specifications

Attribute	Attribute Value

Part Number	TIP42G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW21272267
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Frequency	3 MHz
Voltage Rating (DC)	-40.0 V
Current Rating	100 mA
Output Voltage	≥2.70 V
Number of Positions	3 Position
Polarity	PNP
Power Dissipation	2 W
Breakdown Voltage (Collector to Emitter)	40 V
Thermal Resistance	1.67℃/W (RθJC)
Continuous Collector Current	6A
hFE Min	15 @3A, 4V
Input Power (Max)	2 W
DC Current Gain (hFE)	75
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	2000 mW
	expand all
Size-Length	10.28 mm
Material	Silicon
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The versatility of this PNP TIP42G GP BJT from ON Semiconductor makes it capable of being use as either a switch or amplifier in your circuit. This bipolar junction transistor"s maximum emitter base voltage is 5 V. Its maximum power dissipation is 2000 mW. This product comes in rail packaging to keep individual parts separated and protected. This bipolar junction transistor has an operating temperature range of -65 °C to 150 °C. It has a maximum collector emitter voltage of 40 V and a maximum emitter base voltage of 5 V.
