TL16C752BTPTREP - TI

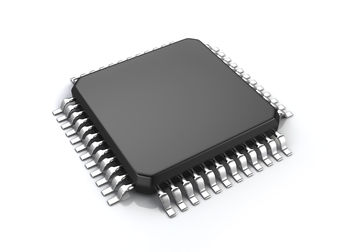

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TL16C752BTPTREP
Manufacturer

TI
ChipWorker Part#

CW6682742
Category

UART Chip, UART Interface IC
Package

LQFP-48
Description

TEXAS INSTRUMENTS TL16C752BTPTREP UART Interface, 2Channel, 3Mbps, 2.7V, 3.6V, LQFP, 48Pins
Documentation

Datasheet

TL16C752BTPTREP Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TL16C752BTPTREP Specifications

Attribute	Attribute Value

Part Number	TL16C752BTPTREP
Manufacturer	TI
ChipWorker Part#	CW6682742
Category	UART Chip, UART Interface IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	LQFP-48
Supply Voltage (DC)	2.70V (min)
Operating Voltage	3.30 V
Supply Current	20 mA
Number of Channels	2 Channel
Data Rate	3.00 Mbps
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.7 V
	expand all
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

description
The TL16C752B-EP is a dual-universal asynchronous receiver/transmitter (UART) with 64-byte FIFOs,
automatic hardware/software flow control, and data rates up to 3 Mbps. The TL16C752B-EP offers enhanced features. It has a transmission control register (TCR) that stores receiver FIFO threshold levels to start/stop transmission during hardware and software flow control. With the FIFO RDY register, the software gets the status of TXRDY/RXRDY for all four ports in one access.
