TLC5510INSR - TI

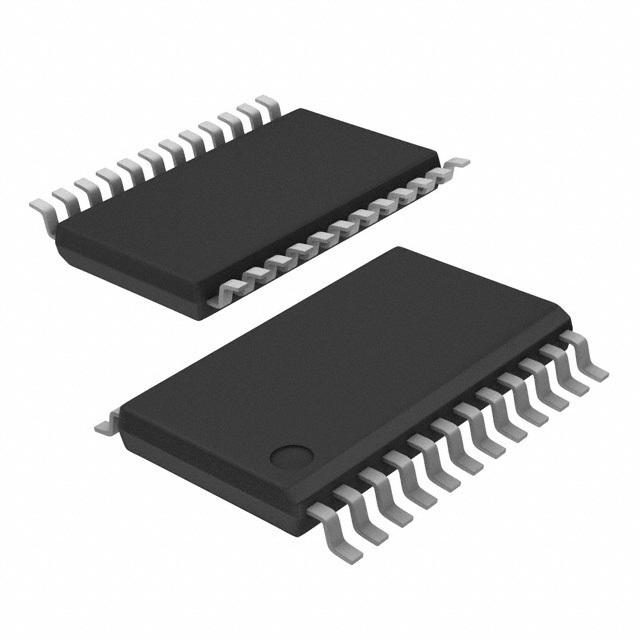

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TLC5510INSR
Manufacturer

TI
ChipWorker Part#

CW15069831
Category

Analog to Digital, ADC IC
Package

SOP-24
Description

Analog to Digital Converters - ADC 8Bit 20MSPS 1CH 5V
Documentation

Datasheet

TLC5510INSR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TLC5510INSR Specifications

Attribute	Attribute Value

Part Number	TLC5510INSR
Manufacturer	TI
ChipWorker Part#	CW15069831
Category	Analog to Digital, ADC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	SOP-24
Supply Voltage (DC)	4.75V (min)
Supply Current	18.0 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Bits	8 Bit
Sample Rate	20 Msps
Power Consumption	127.5 mW
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	75 ℃
Operating Temperature (Min)	20 ℃
Number of Input Channels	1 Channel
Input Voltage	2 V
	expand all
Size-Length	15 mm
Size-Width	5.3 mm
Size-Height	1.95 mm
Operating Temperature	20℃ ~ 75℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

8 Bit Analog to Digital Converter 1 Input 1 Flash 24-SO
