TMP01FPZ ,Temperature Sensor - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

117 points

Part No

TMP01FPZ
Manufacturer

ADI
ChipWorker Part#

CW257745
Category

Temperature Sensor
Package

DIP-8
Description

ANALOG DEVICES TMP01FPZ Temperature Sensor IC, Voltage, ± 3℃, -55℃, +125℃, DIP, 8Pins
Documentation

Datasheet
Ships from

Moscow
Наличие

93823 pcs In Stock
Estimated Price

Price on Request

Buy TMP01FPZ

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

TMP01FPZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

TMP01FPZ Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	TMP01FPZ
Manufacturer	ADI
ChipWorker Part#	CW257745
Category	Temperature Sensor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Voltage (DC)	4.50V (min)
Output Voltage	1.49 V
Output Current	2 mA
Supply Current	500 µA
Number of Positions	8 Position
Power Dissipation	2.5 mW
Output Current (Max)	50 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.5 mW
Accuracy	±1 ℃
Supply Voltage	4.5V ~ 13.2V
Supply Voltage (Max)	13.2 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	9.27 mm
Size-Width	6.35 mm
Size-Height	3.3 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR

Similar & Replacement Parts

Similar products

Product Description

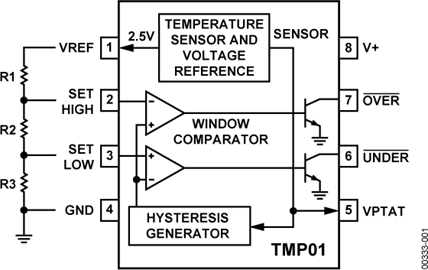

The TMP01 series Temperature Sensor that generates a voltage output proportional to absolute temperature and a control signal from one of two outputs when the device is either above or below a specific temperature range. Both the high/low temperature trip points and hysteresis (overshoot) band are determined by user-selected external resistors. The TMP01 consists of a band gap voltage reference combined with a pair of matched comparators. The reference provides both a constant 2.5 V output and a voltage proportional to absolute temperature (VPTAT) which has a precise temperature coefficient of 5 mV/K and is 1.49 V (nominal) at 25°C. The TMP01 utilizes proprietary thin-film resistors in conjunction with production laser trimming to maintain a temperature accuracy of ±1°C (typical) over the rated temperature range, with excellent linearity. The open-collector outputs are capable of sinking 20 mA, enabling the TMP01 to drive control relays directly.
±1°C Accuracy over-temperature (typical)
User-programmable temperature trip points
User-programmable hysteresis
Over/under-temperature sensor and alarm
Board-level temperature sensing
