TPS65023QRSBRQ1 - TI

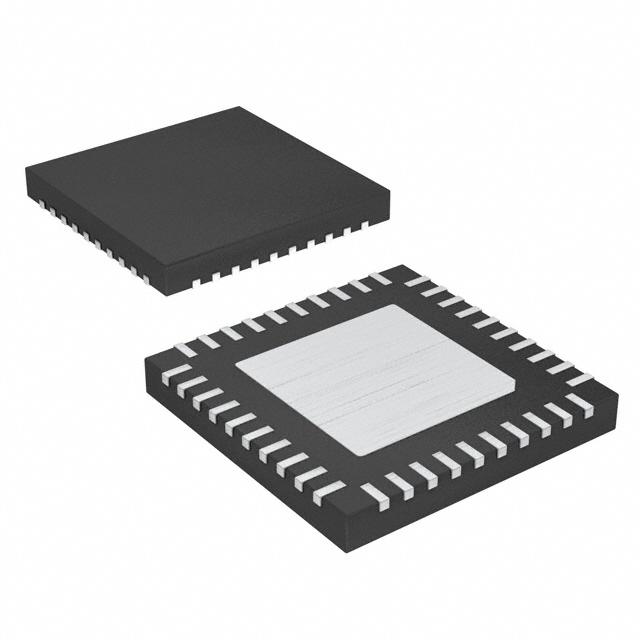

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS65023QRSBRQ1
Manufacturer

TI
ChipWorker Part#

CW49165237
Category

Battery Management IC
Package

WQFN-40
Description

Automotive 1.5V to 6.5V, 3 Buck & 3 LDO Power Management IC 40-WQFN -40℃ to 125℃
Documentation

Datasheet

TPS65023QRSBRQ1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS65023QRSBRQ1 Specifications

Attribute	Attribute Value

Part Number	TPS65023QRSBRQ1
Manufacturer	TI
ChipWorker Part#	CW49165237
Category	Battery Management IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	40 Pin
Case/Package	WQFN-40
Power Dissipation	2650 mW
Quiescent Current	100 µA
Number of Regulated Outputs	6 Output
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2650 mW
Supply Voltage	2.5V ~ 6V
	expand all
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Description
The TPS65023-Q1 device is an integrated power management integrated circuit (IC) for applications powered by one Li-Ion or Li-Polymer cell, which require multiple power rails. The TPS65023-Q1 device provides three highly efficient, step-down converters targeted at providing the core voltage, peripheral, input and output (I/O), and memory rails in a processor-based system. The core converter allows for on-the-fly voltage changes through a serial interface, allowing the system to implement dynamic power savings. All three step-down converters enter a low-power mode at light load for maximum efficiency across the widest possible range of load currents.
Features
• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results:
– Device Temperature Grade 1: –40°C to 125°C
Ambient Operating Temperature Range
– Device HBM ESD Classification Level 2
– Device CDM ESD Classification Level C4A (RHA Package) or C5 (RSB Package)
• 1.5 A, 90% Efficient Step-Down Converter for Processor Core (VDCDC1)
• 1.2 A, Up to 95% Efficient Step-Down Converter for System Voltage (VDCDC2)
• 1 A, 92% Efficient Step-Down Converter for Memory Voltage (VDCDC3)
• 30 mA LDO/Switch for Real Time Clock (VRTC)
• 2 × 200 mA General-Purpose Low Dropout (LDO)
• Dynamic Voltage Management for Processor Core
• Preselectable LDO Voltage Using Two Digital Input Pins
• Externally Adjustable Reset Delay Time
• Battery Backup Functionality
• Separate Enable Pins for Inductive Converters
• I2C-Compatible Serial Interface
• 85-μA Quiescent Current
• Low-Ripple Pulse-Frequency Modulation (PFM) Mode
• Thermal Shutdown Protection
Applications
• Automotive Clusters
• Automotive Infotainment Systems
• Digital Radios
• Supply DaVinci™ Digital Signal Processor (DSP) Family Solutions
