TPS70930DRVT ,Voltage Regulator - TI

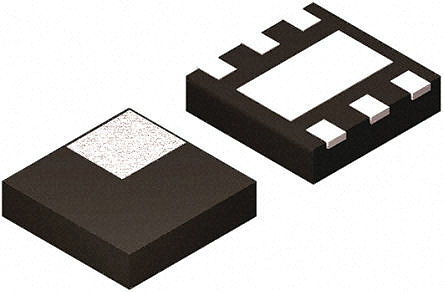

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

109 points

Part No

TPS70930DRVT
Manufacturer

TI
ChipWorker Part#

CW45817271
Category

Voltage Regulator
Package

WDFN-6
Description

TEXAS INSTRUMENTS TPS70930DRVT Fixed LDO Voltage Regulator, 2.7V to 30V in, 3V/150mA out, SON-6
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 0.66

Buy TPS70930DRVT

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

TPS70930DRVT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

TPS70930DRVT Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	TPS70930DRVT
Manufacturer	TI
ChipWorker Part#	CW45817271
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	WDFN-6
Number of Outputs	1 Output
Output Voltage	3 V
Output Current	150 mA
Number of Positions	6 Position
Quiescent Current	1 µA
Output Capacitor Type	Ceramic
voltage rating	300 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	30 V
Input Voltage (Min)	2.7 V
Output Current (Max)	500 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	≤30 V
	expand all
Size-Length	2.1 mm
Size-Width	2.1 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

Keep the energy stable for every system by using this LDO TPS70930DRVT linear regulator by Texas Instruments. Its typical dropout voltage at current is 0.245@50mA V. It has an overall accuracy of ±2 %. This voltage regulation device"s single output can produce a current up to 0.15 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.7 V that does not exceed 30 V. With a fixed output that has a voltage of 3 V, this is power management at its best. Users like the load regulation of 20mV(Typ) and line regulation of 3mV(Typ). This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C.
