TPS79730DCKR ,Voltage Regulator - TI

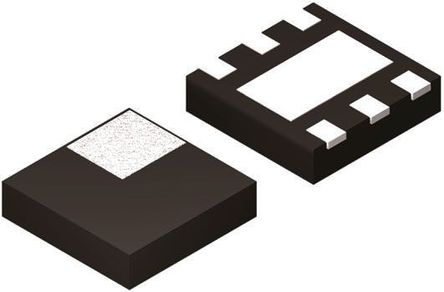

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

158 points

Part No

TPS79730DCKR
Manufacturer

TI
ChipWorker Part#

CW24913938
Category

Voltage Regulator
Package

SC-70-5
Description

Single Channel LDO Single Output LDO, 50mA, Fixed (3V), Low Quiescent Current, Power Good (PG) Output LDO Regulator Pos 3V 0.05A 5Pin SC-70 T/R
Documentation

Datasheet
Ships from

Moscow
Наличие

5683 pcs In Stock
Estimated Price

$ 0.23

Buy TPS79730DCKR

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

TPS79730DCKR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

TPS79730DCKR Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	TPS79730DCKR
Manufacturer	TI
ChipWorker Part#	CW24913938
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Number of Outputs	1 Output
Input Voltage (DC)	5.50V (max)
Output Voltage	3 V
Output Current	50 mA
Supply Current	2 µA
Number of Positions	5 Position
Power Dissipation	0.318 W
Quiescent Current	1.00 µA
Output Capacitor Type	Ceramic
voltage rating	110 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.8 V
Output Voltage (Min)	3 V
Output Current (Max)	0.05 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	318 mW
Accuracy	4 %
Input Voltage	≤5.5 V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Similar & Replacement Parts

Similar products

Product Description

DESCRIPTION
The TPS797xx family of low-dropout (LDO) voltage regulators offers the benefits of low-dropout voltage and ultralow-power operation. The device is stable with any capacitor (>0.47µF). Therefore, implementations of this device require very little board space due to the miniaturized packaging and potentially small output capacitor. In addition, the family includes an integrated open drain active-high power good (PG) output. Intended for use in microcontroller based, battery-powered applications, the TPS797xx family’s low dropout and ultralow-powered operation results in a significant increase in system battery operating life. The small packaging minimizes consumption of board space.
FEATURES
10-mA Low-Dropout Regulator
Ultralow 1.2-µA Quiescent Current at 10 mA
5-Pin SC70/SOT-323 (DCK) Package
Integrated Power Good Output
Stable With Any Capacitor (>0.47 µF)
Dropout Voltage Typically 105 mV at 10 mA(TPS79733)
Over Current Limitation
–40°C to 85°C Operating Junction Temperature Range
APPLICATIONS
Battery Powered Microcontrollers and Microprocessors
