XC9536XL-10VQG64C ,CPLD chip - Xilinx

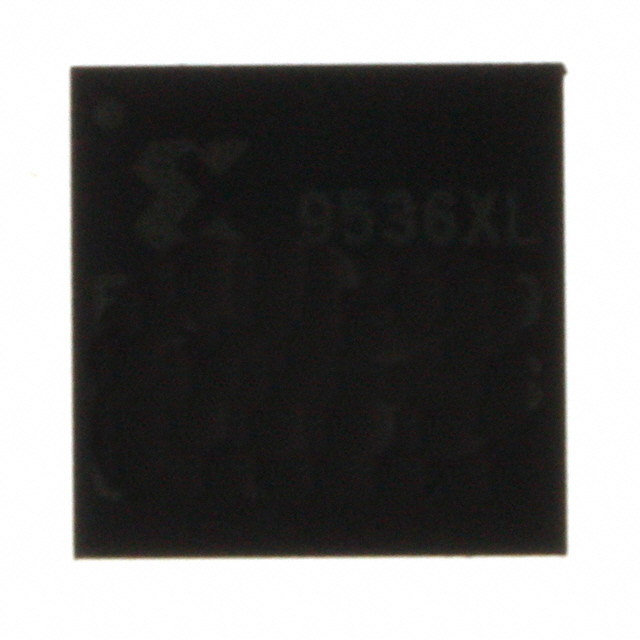

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

158 points

Part No

XC9536XL-10VQG64C
Manufacturer

Xilinx
ChipWorker Part#

CW6309057
Category

CPLD chip
Package

TQFP-64
Description

CPLD XC9500 Family 800Gates 36 Macro Cells 100MHz 0.35um, CMOS Technology 3.3V 64Pin VTQFP
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 1.73

Buy XC9536XL-10VQG64C

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

XC9536XL-10VQG64C Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

XC9536XL-10VQG64C Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	XC9536XL-10VQG64C
Manufacturer	Xilinx
ChipWorker Part#	CW6309057
Category	CPLD chip
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	TQFP-64
Frequency	100 MHz
Supply Voltage (DC)	3.00V (min)
Number of Positions	64 Position
Number of I/O Pins	36 IO
Number of Inputs and Outputs	36 Input IO
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	3.3 V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	expand all
Operating Temperature	0℃ ~ 70℃ (TA)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Similar & Replacement Parts

Similar products

Product Description

The XC9536XL-10VQG64C is a high-performance CMOS ISP Flash CPLD targeted for high-performance, low-voltage applications. It is comprised of two 54V18 function blocks, providing 800 usable gates with propagation delays of 5ns. Power dissipation in CPLDs can vary substantially depending on the system frequency, design application and output loading. To help reduce power dissipation, each macro cell in a XC9500XL device may be configured for low-power mode (from the default high-performance mode). In addition, unused product-terms and macro cells are automatically deactivated by the software to further conserve power.
Low power operation
Fast FLASH™ technology
In-System Programmable
Local clock inversion with three global and one product-term clocks
Individual output enable per output pin
Input hysteresis on all user and boundary-scan pin inputs
Bus-hold circuitry on all user pin inputs
Fast concurrent programming
Slew rate control on individual outputs
Enhanced data security
Excellent quality and reliability
0 to 70°C Operating temperature range
ESD sensitive device, take proper precaution while handling the device.

expand all
