ZHCS506TA ,Schottky Diode - Diodes

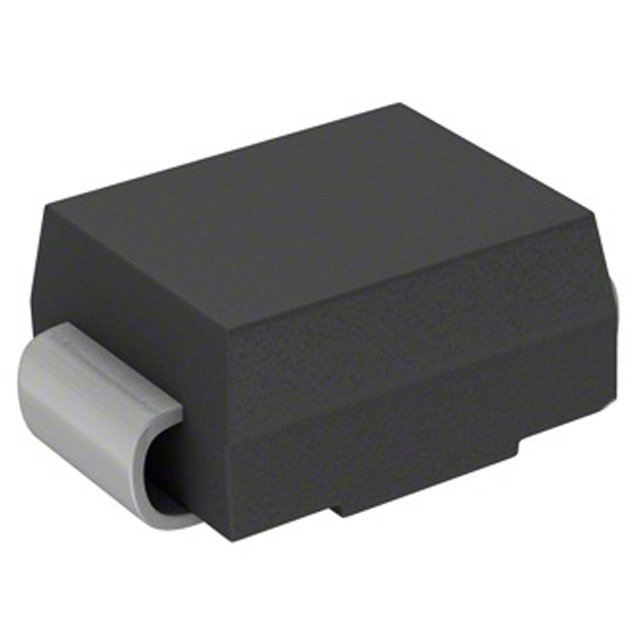

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

103 points

Part No

ZHCS506TA
Manufacturer

Diodes
ChipWorker Part#

CW9445266
Category

Schottky Diode
Package

SOT-23-3
Description

ZHCS506 Series 500mA 60V 40uA High Current Schottky Barrier Diode - SOT-23
Documentation

Datasheet
Ships from

Moscow
Наличие

376 pcs In Stock
Estimated Price

$ 0.13

Buy ZHCS506TA

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

ZHCS506TA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

ZHCS506TA Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	ZHCS506TA
Manufacturer	Diodes
ChipWorker Part#	CW9445266
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	60.0 V
Current Rating	500 mA
Capacitance	20.0 pF
Output Current	≤500 mA
Number of Positions	3 Position
Forward Voltage	630mV @500mA
Polarity	Standard
Power Dissipation	330 mW
Reverse recovery time	10 ns
Forward Current	500 mA
Max Forward Surge Current (Ifsm)	5.5 A
Maximum Forward Voltage (Max)	630mV @500mA
Forward Current (Max)	0.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	125℃ (Max)
Power Dissipation (Max)	330 mW
	expand all
Size-Length	3.05 mm
Size-Width	1.4 mm
Size-Height	1 mm
Operating Temperature	125 ℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The ZHCS Series diodes provide excellent high performance specifications in miniature surface mount packages. An optimized geometry / process with superior packaging gives an unmatched IF/VF performance and PDcapability, enabling significant space savings, circuit efficiencies and cost effective solutions to larger package options.
Features
VR40V and 60V types
Low forward voltage
High current capability
Fast recovery time
Miniature package size options
Very low VFat high temperature operation (above 85°C) (ZLLS series) complement the existing range of ZHCS series (optimized for operation at lower temperatures)
Applications
Forward and flyback converters
Mobile telecommunications, PCMCIA (flashcards) and
SCSI LAN PSUs
Distributed and auxiliary supplies
High frequency rectification
DC conversion (telecom DC modules)
Charging circuits
Motor control
