ZTX857 - Diodes

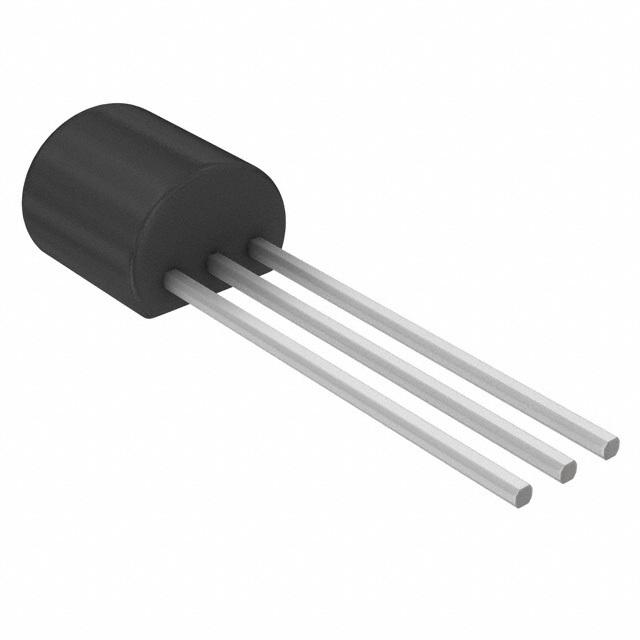

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ZTX857
Manufacturer

Diodes
ChipWorker Part#

CW46317640
Category

BJT Transistor, BJT
RoHS

Lead free / RoHS Compliant
Description

TRANS NPN 300V 3A MED E-LINE
Documentation

Datasheet

ZTX857 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ZTX857 Specifications

Attribute	Attribute Value

Part Number	ZTX857
Manufacturer	Diodes
ChipWorker Part#	CW46317640
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Voltage Rating (DC)	300 V
Current Rating	5.00 A
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	1.2 W
Breakdown Voltage (Collector to Emitter)	300 V
Continuous Collector Current	3A
hFE Min	100 @500mA, 10V
Input Power (Max)	1.2 W
DC Current Gain (hFE)	200
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1200 mW
	expand all
Size-Length	4.77 mm
Size-Width	2.41 mm
Size-Height	4.01 mm
Material	Silicon
Operating Temperature	-55℃ ~ 200℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The ZTX857 is a 300V E-Line Silicon NPN Planar Medium Power High Current Transistor with very low saturation voltage.
High voltage
