132146 - Amphenol

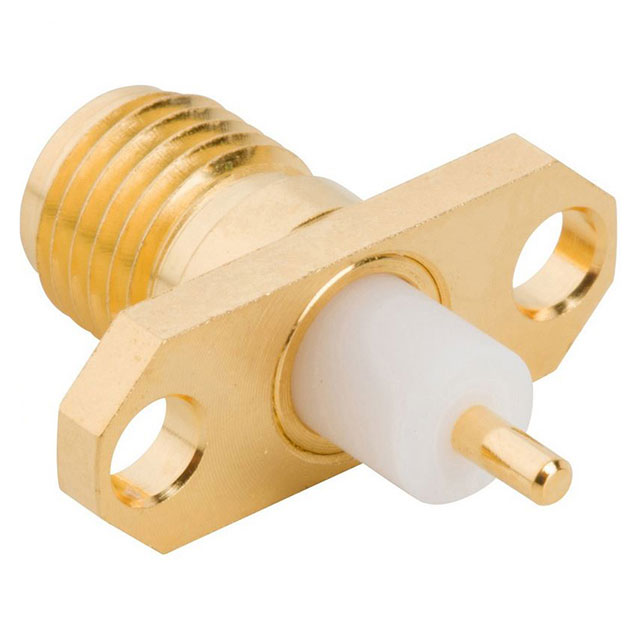

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

132146
Manufacturer

Amphenol
ChipWorker Part#

CW38679255
Category

RF Coaxial Connector, RF Connector
Package

SMA
Description

Conn SMA RCP 0Hz to 18GHz 50Ω Solder Pot ST Panel Mount Gold
Documentation

Datasheet

132146 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

132146 Specifications

Attribute	Attribute Value

Part Number	132146
Manufacturer	Amphenol
ChipWorker Part#	CW38679255
Category	RF Coaxial Connector, RF Connector
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	SMA
Contact Plating	Gold
Number of Mating Cycles	500 Cycle
Operating Temperature (Max)	165 ℃
Operating Temperature (Min)	-65 ℃
	expand all
Size-Length	27.4 mm
Size-Width	12.7 mm
Size-Height	12.7 mm
Housing Color	Gold
Contact Material	Beryllium Copper
Dielectric Material	Teflon
Operating Temperature	-65℃ ~ 165℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536694010
ECCN Code	EAR99

Product Description

RF Connector SMA Straight Jack Round Post 50 Ohm 4-Hole Flange
