16FCD10 - TE Connectivity

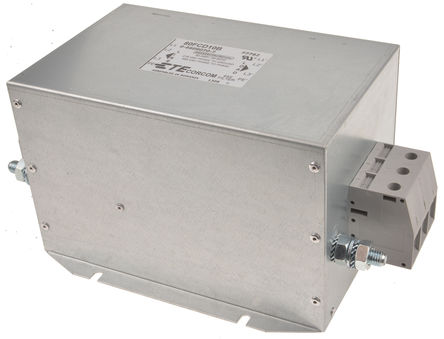

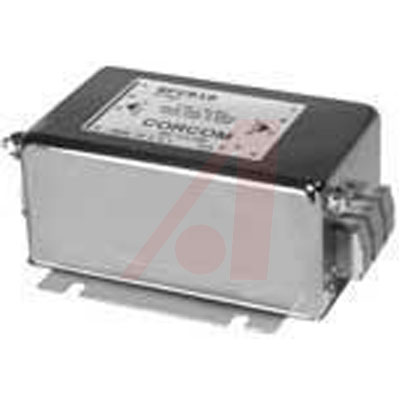

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

16FCD10
Manufacturer

TE Connectivity
ChipWorker Part#

CW91921692
Category

Filter
Description

Power Line Filter EMI/RFI 50Hz/60Hz 16A 480VAC Terminal Block Flange Mount
Documentation

Datasheet

16FCD10 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

16FCD10 Specifications

Attribute	Attribute Value

Part Number	16FCD10
Manufacturer	TE Connectivity
ChipWorker Part#	CW91921692
Category	Filter
Documentation	Datasheet
Current Rating	16 A
Capacitance	2 µF
Inductance	4.5 mH
Current Rating (Max)	16 A
Operating Temperature (Max)	40 ℃
Operating Temperature (Min)	-10 ℃
Voltage Rating (Max)	480 VAC
Voltage Rating	480 VAC
	expand all
Size-Length	182.9 mm
Size-Width	139.2 mm
Size-Height	64.8 mm
Operating Temperature	-10℃ ~ 40℃
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8548900100
ECCN Code	EAR99

Product Description

The FCD external power line filters provide three-phase filtering for frequency inverters and variable speed motor drives. Designed for very noisy Delta applications, they attenuate conducted interference at low- and high-frequency ranges and protect programmable logic controllers from RF noise on the AC power line. These filters perform best when installed on the line side of the motor drive. The FCD filters prevent noise from returning to the line, enabling equipment to meet strict European regulations on RFI. Suited for field wiring applications, these filters are ideal for EMC troubleshooting and field refurbishing. The FCD filters feature side flanges for easy mounting and DIN type terminals, which eliminate live metal parts allowing safe and easy connections. They also can be sold as an accessory item to motor drives sold in Europe.*Maximum Leakage Current** (**Line-to-Ground**): (6 A) 2.9, (50 A) 5.7 mA @ 120 VAC, 60 Hz; (6 A) 4.9, (50 A) 9.8 mA @ 250 VAC, 50 Hz. **Hipot Rating** (1 minute): **Line-to-Ground** — 2250 VDC; **Line-to-Line** — 1450 VDC. **Operating Frequency**: 50/60 Hz. **Maximum Rated Voltage**: **Phase-to-Phase** — 480 VAC; **Phase-to-Neutral/Ground** — 277 VAC.
