TPS62745DSST - TI

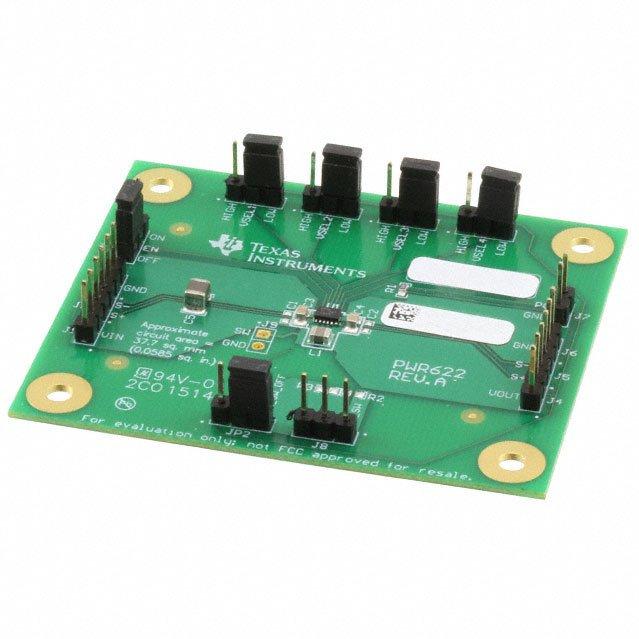

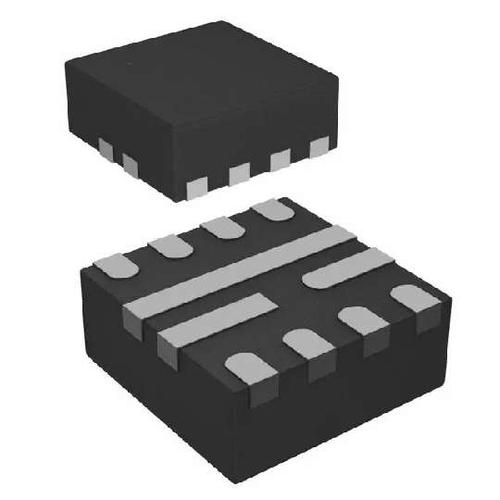

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS62745DSST
Manufacturer

TI
ChipWorker Part#

CW33519450
Category

Voltage Regulator
Package

WSON-12
Description

Conv DC-DC 3.3V to 10V Step Down Single-Out 1.8V to 3.3V 0.3A 12Pin WSON EP T/R
Documentation

Datasheet

TPS62745DSST Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS62745DSST Specifications

Attribute	Attribute Value

Part Number	TPS62745DSST
Manufacturer	TI
ChipWorker Part#	CW33519450
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	12 Pin
Case/Package	WSON-12
Number of Outputs	1 Output
Output Voltage	1.8V ~ 3.3V
Output Current	300 mA
Number of Positions	12 Position
Quiescent Current	400 nA
Number of Regulated Outputs	1 Output
Switching Frequency	2.5 MHz
Topology	Buck
Input Voltage (Max)	10 V
Input Voltage (Min)	3.3 V
Output Voltage (Max)	3.3 V
Output Voltage (Min)	1.8 V
Output Current (Max)	0.3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	40 ℃
Supply Voltage (Min)	3.3 V
Input Voltage	3.3V ~ 10V
	expand all
Size-Length	3.1 mm
Size-Width	2.1 mm
Size-Height	0.8 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The TPS62745DSST is a synchronous Step-down Converter optimized provides a regulated output voltage consuming only 400nA quiescent current. The device operates from two rechargeable Li-ion batteries, Li-primary battery chemistries such as Li-SOCl2, Li-SO2, Li-MnO2 or four to six cell alkaline batteries. The input voltage range up to 10V allows also operation from a USB port and thin-film solar modules. The output voltage is set with four VSEL pins between 1.3 and 2.8V. It features low output ripple voltage and low noise with a small output capacitor. An internal input voltage switch controlled by pin EN_VIN_SW connects the supply voltage to pin VIN_SW. The switch is intended to be used for an external voltage divider, scaling down the input voltage for an external ADC. The switch is automatically opened when the supply voltage is below the undervoltage lockout threshold.
RF Friendly DCS-Control™
Low output ripple voltage
Integrated input voltage switch
Integrated discharge function at VOUT
Open drain power good output
