SN6505ADBVT ,Battery Management IC - TI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

103 points

Part No

SN6505ADBVT
Manufacturer

TI
ChipWorker Part#

CW33570517
Category

Battery Management IC
Package

SOT-23-6
Description

TEXAS INSTRUMENTS SN6505ADBVT Special Function IC, Transformer Driver, 2.25V to 5.5V in, SOT-23-6
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 2.88

Buy SN6505ADBVT

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

SN6505ADBVT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

SN6505ADBVT Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	SN6505ADBVT
Manufacturer	TI
ChipWorker Part#	CW33570517
Category	Battery Management IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Supply Voltage (DC)	2.25V (min)
Output Current	2 A
Supply Current	1 mA
Number of Positions	6 Position
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	2.25V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.25 V
	expand all
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Similar & Replacement Parts

Similar products

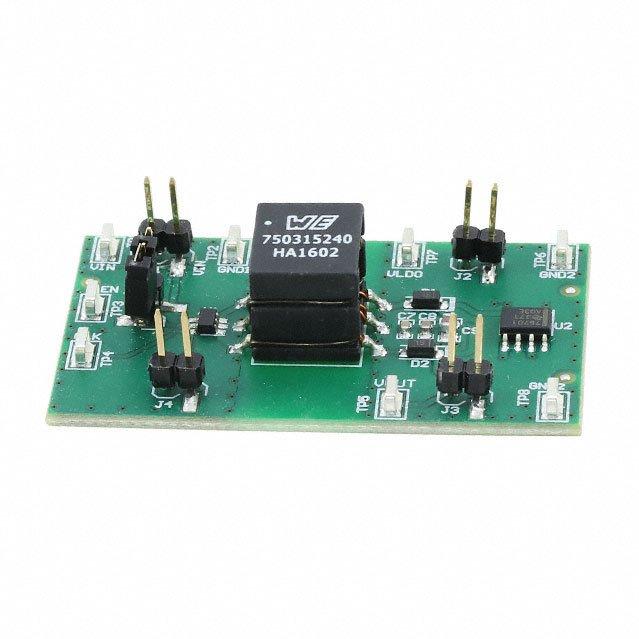

Product Description

The SN6505ADBVT is a low-EMI Push-Pull Transformer Driver, specifically designed for small form factor, isolated power supplies. Ultra-low noise and EMI are achieved by slew rate control of the output switch voltage and through spread spectrum clocking (SSC). The SN6505 consists of an oscillator followed by a gate drive circuit that provides the complementary output signals to drive ground referenced N-channel power switches. The device includes two 1A power-MOSFET switches to ensure start-up under heavy loads. The switching clock can also be provided externally for accurate placement of switcher harmonics or when operating with multiple transformer drivers. The internal protection features include an under-voltage lockout and break-before-make circuitry.
1A High output drive at 5V Supply
0.25R Maximum low RON at 4.5V Supply
Ultra-Low EMI
Spread spectrum clocking
160kHz Precision internal oscillator
Synchronization of multiple devices with external clock input
Slew-rate control
1.7A Current-Limit
<1µA Low shutdown current
Thermal shutdown
Soft-start to reduce in-rush current

expand all
