SN6505BDBVR - TI

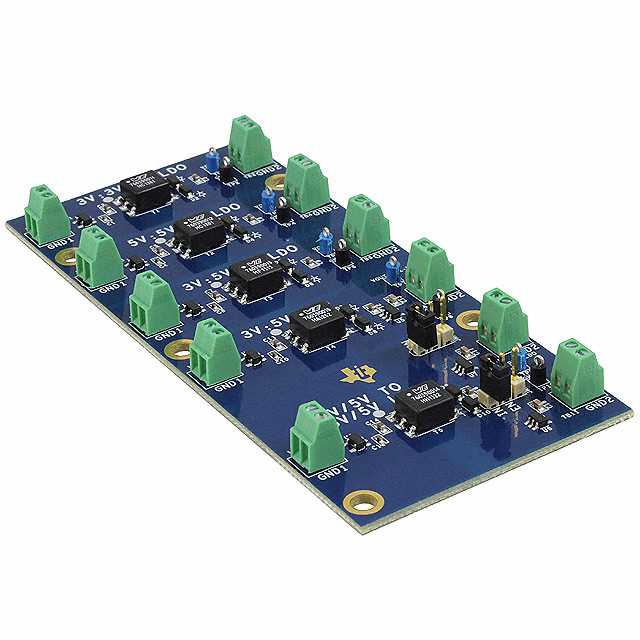

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN6505BDBVR
Manufacturer

TI
ChipWorker Part#

CW8691034
Category

Battery Management IC
Package

SOT-23-6
Description

Conv DC-DC Single Non-Inverting/Inverting/Step Up/Step Down 2.2V to 5.5V 6Pin SOT-23 T/R
Documentation

Datasheet

SN6505BDBVR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN6505BDBVR Specifications

Attribute	Attribute Value

Part Number	SN6505BDBVR
Manufacturer	TI
ChipWorker Part#	CW8691034
Category	Battery Management IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Number of Outputs	1 Output
Output Voltage	0V ~ 16V
Output Current	1 A
Supply Current	1.56 mA
Switching Frequency	424 kHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.2 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	2.25V ~ 5.5V
	expand all
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The SN6505 is a low-noise, low-EMI push-pull transformer driver, specifically designed for small form factor, isolated power supplies. It drives low-profile, center-tapped transformers from a 2.25 V to 5 V DC power supply. Ultra-low noise and EMI are achieved by slew rate control of the output switch voltage and through Spread Spectrum Clocking (SSC). The SN6505 consists of an oscillator followed by a gate drive circuit that provides the complementary output signals to drive ground-referenced N-channel power switches. The device includes two 1-A Power-MOSFET switches to ensure start-up under heavy loads. The switching clock can also be provided externally for accurate placement of switcher harmonics, or when operating with multiple transformer drivers. The internal protection features include a 1.7A current limiting, under-voltage lockout, thermal shutdown, and break-before-make circuitry. SN6505 includes a soft-start feature that prevents high inrush current during power up with large load capacitors. The SN6505 is available in a small 6-pin SOT23/DBV package. The device operation is characterized for a temperature range from –55°C to 125°C.
