TCST2103 - VISHAY

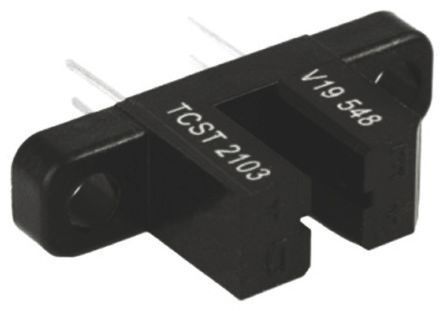

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TCST2103
Manufacturer

VISHAY
ChipWorker Part#

CW1913665
Category

Optical Sensor
RoHS

Lead free / RoHS Compliant
Description

Transmissive Photo Interrupter, Phototransistor, 60mA, 1.25V, 6V, 1mm, 3.1mm
Documentation

Datasheet

TCST2103 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TCST2103 Specifications

Attribute	Attribute Value

Part Number	TCST2103
Manufacturer	VISHAY
ChipWorker Part#	CW1913665
Category	Optical Sensor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	Lead-4
Voltage Rating (DC)	1.25 V
Output Voltage	70.0 V
Output Current	100 mA
Number of Channels	1 Channel
Number of Positions	4 Position
Forward Voltage	1.25 V
Wavelength	950 nm
Input Current	60.0 mA
Peak Wavelength	950 nm
Power Dissipation	0.25 W
Rise Time	10 µs
Output Power	100 mW
Breakdown Voltage (Collector to Emitter)	70 V
Forward Current	60 mA
Reverse Breakdown Voltage	6 V
Forward Current (Max)	60 mA
Fall Time	8 µs
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	250 mW
	expand all
Size-Length	24.5 mm
Size-Width	6.3 mm
Size-Height	11.1 mm
Operating Temperature	-55℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Product Description

* Package type: leaded
Detector type: phototransistor
Dimensions (L x W x H in mm): 24.5 x 6.3 x 10.8
Gap (in mm): 3.1
Typical output current under test: IC = 4 mA
Daylight blocking filter
