LM124AJ - TI

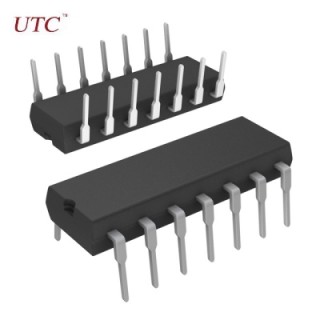

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LM124AJ
Manufacturer

TI
ChipWorker Part#

CW49906816
Category

Operational Amplifier, OP Amp IC
Package

CDIP
Description

Op Amp Quad GP ±16V/32V 14Pin CDIP Tube
Documentation

Datasheet

LM124AJ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LM124AJ Specifications

Attribute	Attribute Value

Part Number	LM124AJ
Manufacturer	TI
ChipWorker Part#	CW49906816
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	CDIP
Output Current	20.0 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Common Mode Rejection Ratio	70 dB
Input Offset Drift	7.00 µV/K
Slew Rate	500 mV/μs
Gain Bandwidth Product	1.2 MHz
Input Offset Voltage	2 mV
Input Bias Current	50 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Gain Bandwidth	1.2 MHz
Minimum CMRR Range	70 dB
	expand all
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Rail, Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

General Description
The LM124/124A consists of four independent, high gain, in ternally frequency compensated operational amplifiers which
were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
