1PS70SB10 ,Schottky Diode - NXP

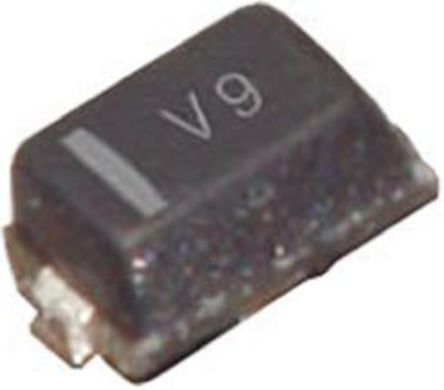

The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
93 points
-
Part No1PS70SB10
-
ManufacturerNXP
-
ChipWorker Part#CW51453410
-
CategorySchottky Diode
-
PackageSOT-323-3
-
DescriptionNXP 1PS70SB10 Small Signal Schottky Diode, Single, 30V, 200mA, 800mV, 600mA, 125℃
-
DocumentationDatasheet
-
Ships fromMoscow
-
Наличие40500 pcs In Stock
-
Estimated Price$ 0.03
