1SMB5918BT3G - ON Semiconductor

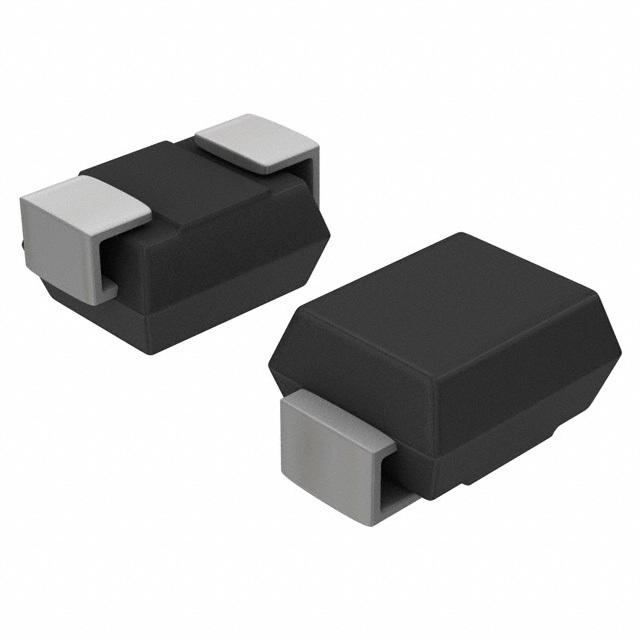

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

1SMB5918BT3G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW407811
Category

Zener Diode, Zener
Package

DO-214AA
Description

SMB 5.1V 550mW
Documentation

Datasheet

1SMB5918BT3G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

1SMB5918BT3G Specifications

Attribute	Attribute Value

Part Number	1SMB5918BT3G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW407811
Category	Zener Diode, Zener
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AA
Voltage Rating (DC)	5.10 V
Capacitance Tolerance	±5 %
Power Rating	3.00 W
Halogen Free Status	Halogen Free
Breakdown Voltage	5.36 V
Number of Positions	2 Position
Forward Voltage	1.5V @200mA
Power Dissipation	3 W
Test Current	73.5 mA
Forward Current	200 mA
Zener Voltage	5.1 V
Maximum Forward Voltage (Max)	1.5V @200mA
Input Power (Max)	3 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	150 ℃
Power Dissipation (Max)	3 W
Accuracy	±5 %
	expand all
Size-Length	4.32 mm
Size-Width	3.56 mm
Size-Height	2.13 mm
Material	Plastic
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The 1SMB59xxBT3G series surface mount Voltage Regulator Zener Diode with void free transfer-moulded plastic case. All external surfaces are corrosion-resistant and leads are readily solderable.
3.3 to 200V Zener voltage range
ESD rating of Class 3 (>16kV) per human body model
Flat handling surface for accurate placement
Package design for top slide or bottom circuit board mounting
AEC-Q101 qualified and PPAP capable
Pb-free are available
