1SS294 - Toshiba

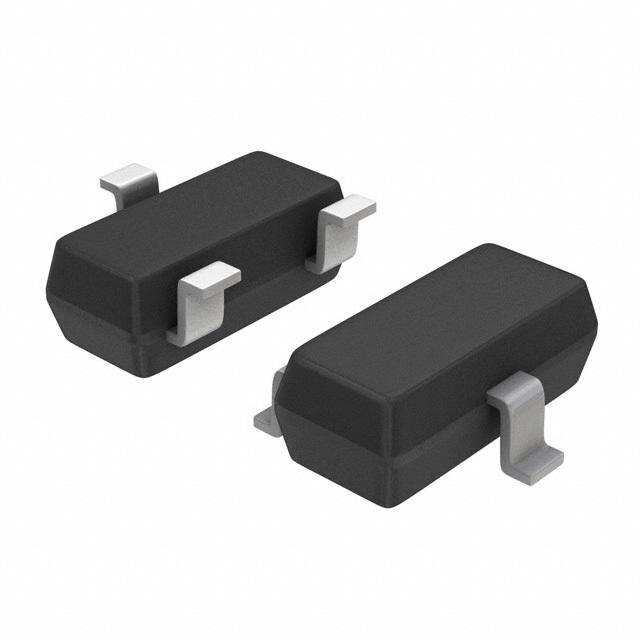

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

1SS294
Manufacturer

Toshiba
ChipWorker Part#

CW158224534
Package

S-Mini
Description

Diode Small Signal Schottky 45V 0.1A 3Pin S-Mini
Documentation

Datasheet

1SS294 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

1SS294 Specifications

Attribute	Attribute Value

Part Number	1SS294
Manufacturer	Toshiba
ChipWorker Part#	CW158224534
Documentation	Datasheet
Number of Pins	3 Pin
Case/Package	S-Mini
Maximum Forward Voltage (Max)	600mV @100mA
Junction Temperature	125℃ (Max)
	expand all
Product Lifecycle Status	Obsolete
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Low Voltage High Speed Switching
• Low forward voltage : VF (3) = 0.54V (typ.)
• Low reverse surrent : IR = 5μA (max)
• Small package : SC−59

expand all
