2N4393 - Central Semiconductor

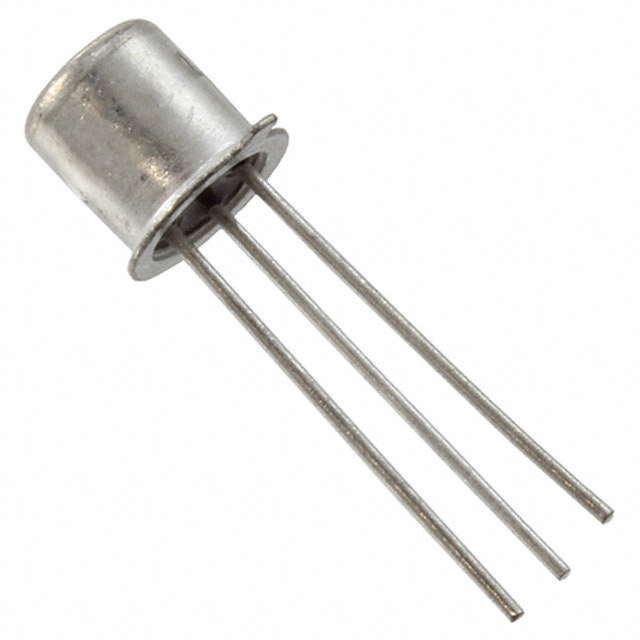

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

2N4393
Manufacturer

Central Semiconductor
ChipWorker Part#

CW8342125
Category

JFET Transistor, JFET
Package

TO-18
Description

JFET N-CH 40V 1.8W TO-18
Documentation

Datasheet

2N4393 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

2N4393 Specifications

Attribute	Attribute Value

Part Number	2N4393
Manufacturer	Central Semiconductor
ChipWorker Part#	CW8342125
Category	JFET Transistor, JFET
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-18
Drain to Source Resistance (on) (Rds)	100 Ω
Polarity	N-Channel
Power Dissipation	1.8 W
Drain to Source Voltage (Vds)	40.0 V
Breakdown Voltage (Drain to Source)	40 V
Breakdown Voltage (Gate to Source)	40 V
Continuous Drain Current (Ids)	100 pA
Reverse Breakdown Voltage	40 V
Input Capacitance (Ciss)	14pF @20V(Vds)
Input Power (Max)	1.8 W
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	1.8 W
	expand all
Material	Silicon
Operating Temperature	-65℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	ECL99
