2N4416A - Central Semiconductor

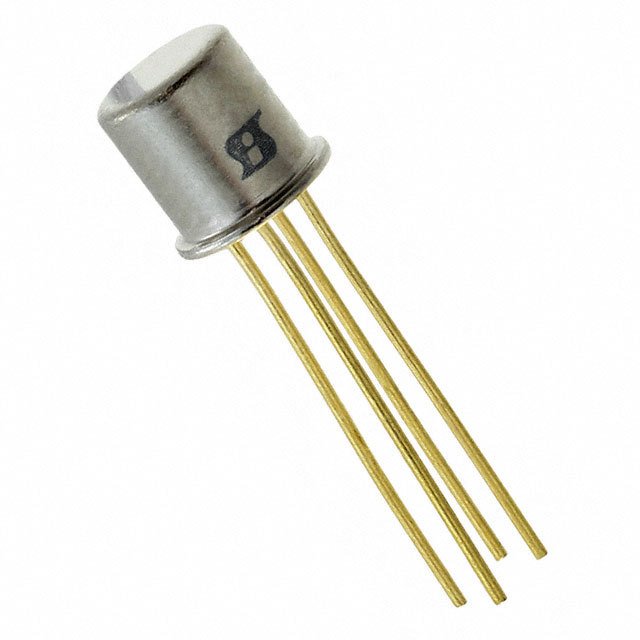

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

2N4416A
Manufacturer

Central Semiconductor
ChipWorker Part#

CW74415858
Category

JFET Transistor, JFET
Package

TO-72
Description

RF Small Signal Field-Effect Transistor, 1Element, Ultra High Frequency Band, Silicon, N-Channel, Junction FET, TO-72, TO-72, 3Pin
Documentation

Datasheet

2N4416A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

2N4416A Specifications

Attribute	Attribute Value

Part Number	2N4416A
Manufacturer	Central Semiconductor
ChipWorker Part#	CW74415858
Category	JFET Transistor, JFET
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-72
Polarity	N-Channel
Power Dissipation	300 mW
Drain to Source Voltage (Vds)	35 V
Breakdown Voltage (Drain to Source)	35 V
Breakdown Voltage (Gate to Source)	35 V
Continuous Drain Current (Ids)	15.0 mA
Reverse Breakdown Voltage	35 V
Input Capacitance (Ciss)	4pF @15V(Vds)
Input Power (Max)	300 mW
Power Dissipation (Max)	300 mW
	expand all
Operating Temperature	-65℃ ~ 200℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

JFET N-Channel 35V 300mW Through Hole TO-72
