2N6520 - CJ

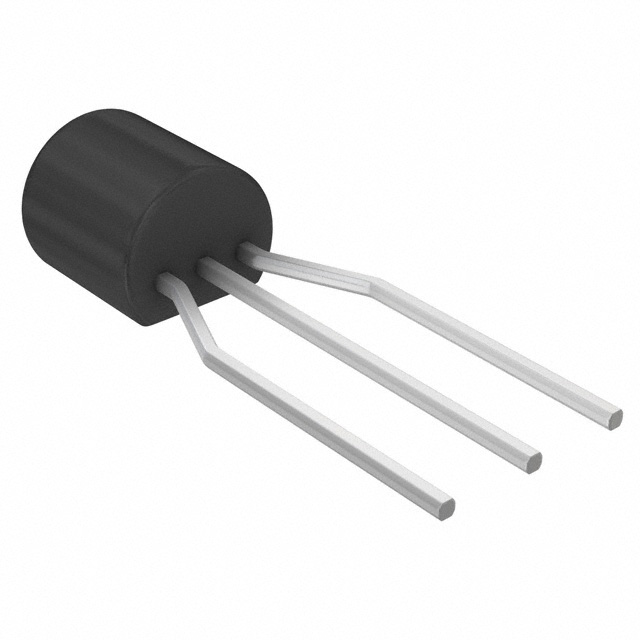

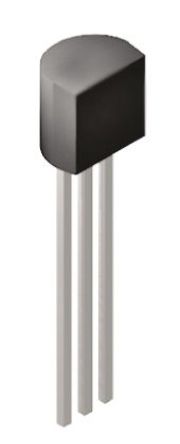

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

2N6520
Manufacturer

CJ
ChipWorker Part#

CW159506303
Package

TO-92
Description

TO-92 PNP 350V 500mA
Documentation

Datasheet

2N6520 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

2N6520 Specifications

Attribute	Attribute Value

Part Number	2N6520
Manufacturer	CJ
ChipWorker Part#	CW159506303
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	TO-92
Polarity	PNP
Breakdown Voltage (Collector to Emitter)	350 V
Continuous Collector Current	500mA
hFE Min	30
hFE Max	200
	expand all
Packaging	Tray
Minimum Packing Quantity	2000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
