2SA1774 - ON Semiconductor

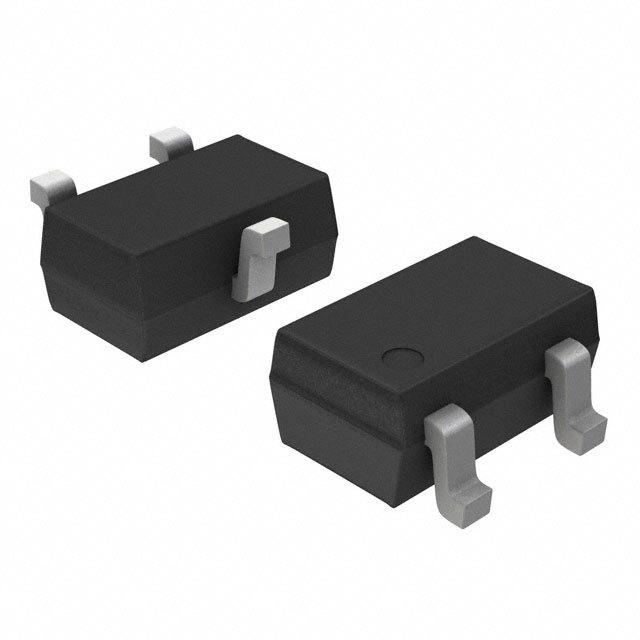

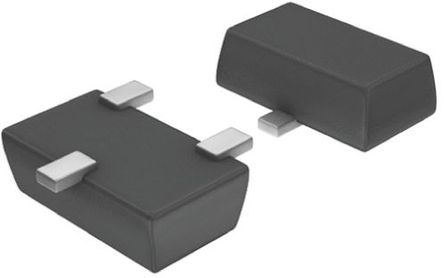

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

2SA1774
Manufacturer

ON Semiconductor
ChipWorker Part#

CW114935189
Category

Transistor
Package

SC-75-3
Description

SC-75-3 PNP 50V 0.1A
Documentation

Datasheet

2SA1774 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

2SA1774 Specifications

Attribute	Attribute Value

Part Number	2SA1774
Manufacturer	ON Semiconductor
ChipWorker Part#	CW114935189
Category	Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	SC-75-3
Voltage Rating (DC)	-50.0 V
Current Rating	-100 mA
Polarity	PNP
Power Dissipation	150 mW
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	0.1A
hFE Min	120
hFE Max	560
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	expand all
Size-Length	1.6 mm
Size-Width	0.8 mm
Size-Height	0.75 mm
Product Lifecycle Status	Unknown
Packaging	Tape
Minimum Packing Quantity	3000
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead

Product Description

This PNP transistor is designed for general purpose amplifier applications. This device is housed in the SC−75/SOT−416/SC−90 package which is designed for low power surface mount applications, where board space is at a premium.
Features
• Reduces Board Space
• High hFE, 210−460 (typical)
• Low VCE(sat), < 0.5 V
• Available in 8 mm, 7−inch/3000 Unit Tape and Reel
• Pb−Free Packages are Available
