2SA2151 - Sanken Electric

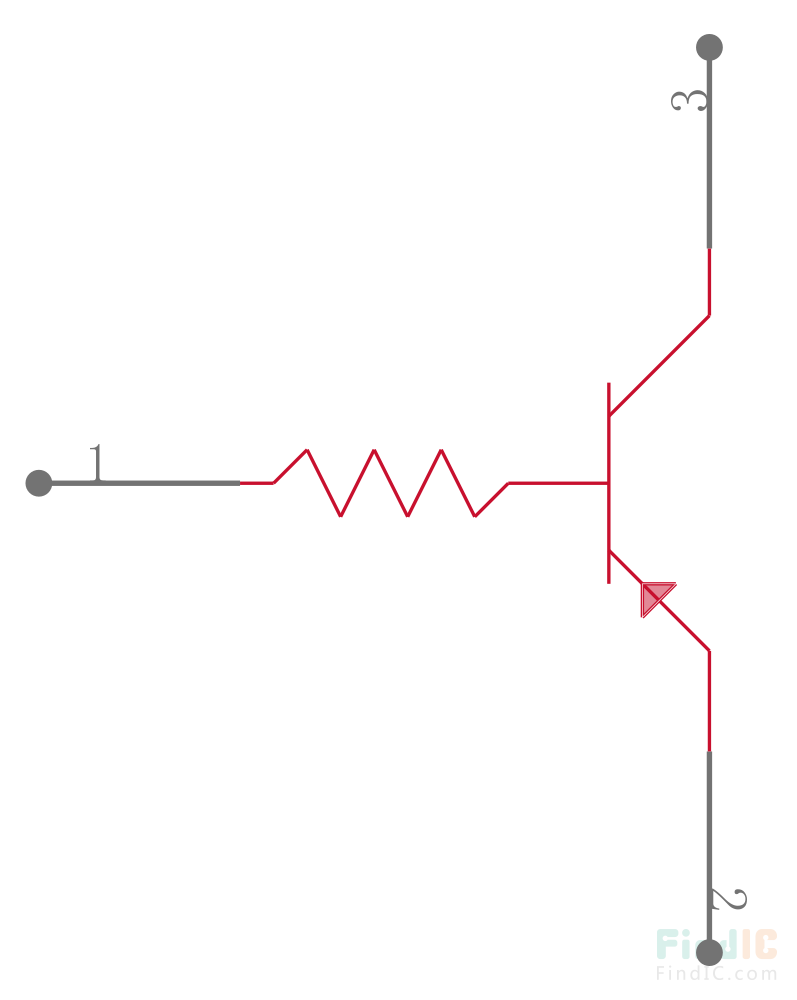

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

2SA2151
Manufacturer

Sanken Electric
ChipWorker Part#

CW226149461
Category

BJT Transistor, BJT
Package

TO-3-3
Description

PNP 200V 15A
Documentation

Datasheet

2SA2151 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

2SA2151 Specifications

Attribute	Attribute Value

Part Number	2SA2151
Manufacturer	Sanken Electric
ChipWorker Part#	CW226149461
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	TO-3-3
Polarity	PNP
Breakdown Voltage (Collector to Emitter)	200 V
Continuous Collector Current	15A
hFE Min	50 @3A, 4V
Input Power (Max)	160 W
	expand all
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Bipolar (BJT) Transistor PNP 200V 15A 20MHz 160W Through Hole TO-3P
