2SAR523EBTL - ROHM Semiconductor

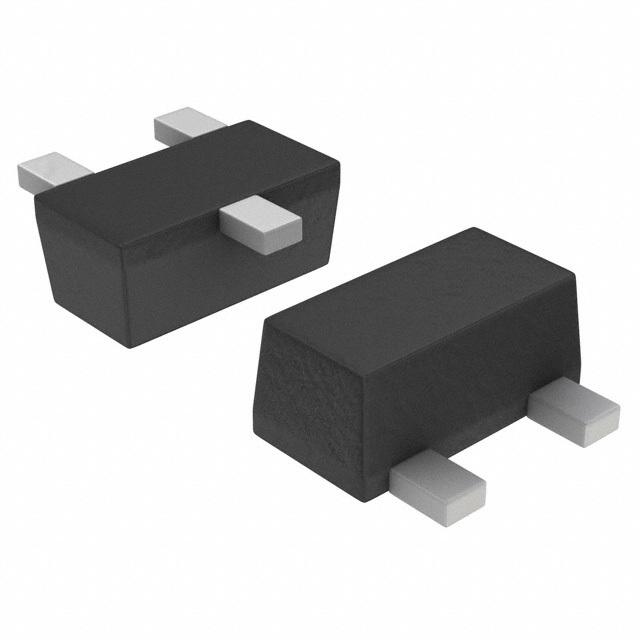

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

2SAR523EBTL
Manufacturer

ROHM Semiconductor
ChipWorker Part#

CW36289885
Category

BJT Transistor, BJT
Package

SOT-416
Description

EMTF PNP 50V 0.1A
Documentation

Datasheet

2SAR523EBTL Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

2SAR523EBTL Specifications

Attribute	Attribute Value

Part Number	2SAR523EBTL
Manufacturer	ROHM Semiconductor
ChipWorker Part#	CW36289885
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-416
Frequency	300 MHz
Power Rating	0.15 W
Number of Positions	3 Position
Polarity	PNP
Power Dissipation	150 mW
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	0.1A
hFE Min	120 @1mA, 6V
hFE Max	560
Input Power (Max)	150 mW
DC Current Gain (hFE)	120
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	150 mW
	expand all
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	PB free

Product Description

Bipolar (BJT) Transistor PNP 50V 100mA 300MHz 150mW Surface Mount EMT3F (SOT-416FL)
