3001682 ,Terminal Block, Connector Terminal - Phoenix

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

89 points

Part No

3001682
Manufacturer

Phoenix
ChipWorker Part#

CW40295959
Category

Terminal Block, Connector Terminal
Description

Conn; Term Blk; 2; 3; 30-14; 400; 17.5A; 4kV; M 2; 0.22Nm (Min.); PA; Screw
Documentation

Datasheet
Ships from

Moscow
Наличие

5 pcs In Stock
Estimated Price

$ 1.48

Buy 3001682

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

3001682 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

3001682 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	3001682
Manufacturer	Phoenix
ChipWorker Part#	CW40295959
Category	Terminal Block, Connector Terminal
Documentation	Datasheet
Mounting Style	DIN Rail, Screw
Pin Pitch	4.2 mm
Number of Contacts	3 Contact
Wire Gauge	14AWG ~ 30AWG
Current Rating	17.5 A
Number of Rows	3 Row
Number of Circuits	1 Circuit
Flammability Rating	UL 94 V-2
Number of Positions	3 Position
Current Rating (Max)	17.5 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-60 ℃
Voltage Rating (Max)	400 V
Voltage Rating	400 V
Operating Voltage (Max)	400 V
	expand all
Size-Length	28 mm
Size-Width	4.2 mm
Housing Color	Gray
Color	Gray
Insulation Material	Nylon
Housing Material	Nylon
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536904000
ECCN Code	EAR99

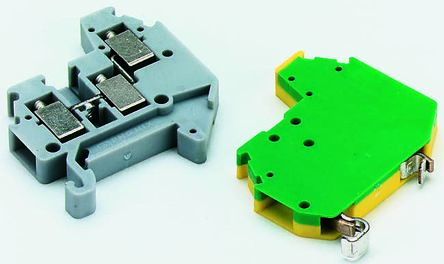

Similar & Replacement Parts

Similar products

Product Description

Terminal Block, Black Color, Single Level, 32 A (Nom.) @ 50°C Current, 24 VDC Nominal Voltage
* PA insulating material
* Screw connection
Modular terminal block with screw connection.
