HMC306MS10E - ADI

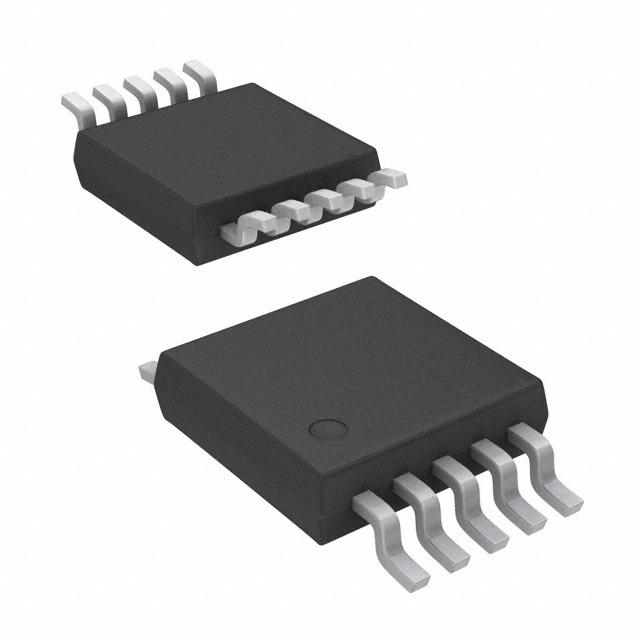

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

HMC306MS10E
Manufacturer

ADI
ChipWorker Part#

CW92520618
Package

MSOP-10
Description

5 0.5dB/1dB/2dB/4dBDigital Attenuator 15.5dB Attenuation 3.8GHz 10Pin MSOP T/R
Documentation

Datasheet

HMC306MS10E Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

HMC306MS10E Specifications

Attribute	Attribute Value

Part Number	HMC306MS10E
Manufacturer	ADI
ChipWorker Part#	CW92520618
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	MSOP-10
Supply Voltage (DC)	3.00V (min)
Number of Channels	1 Channel
Number of Bits	5 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5 V
Supply Voltage (Min)	3 V
	expand all
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	End of Life
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

RF Attenuators 0.5dB ~ 15.5dB 700MHz ~ 3.8GHz 50 Ohms 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
