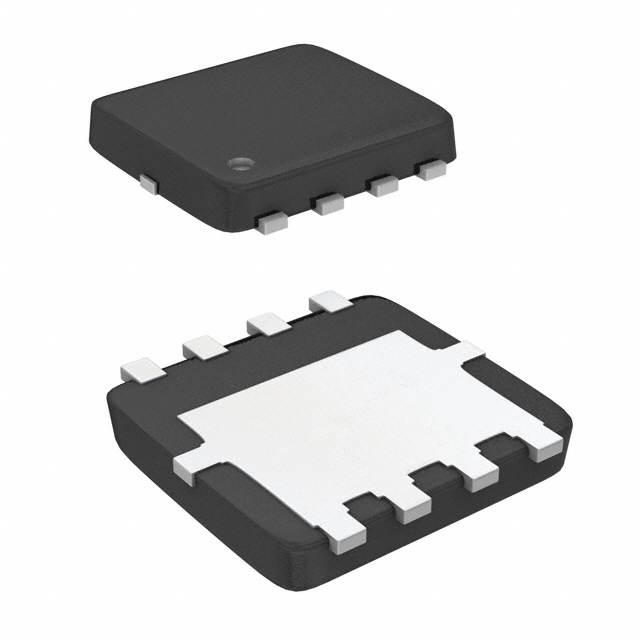

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

100 points

Part No

AON7506
Manufacturer

Alpha & Omega Semiconductor
ChipWorker Part#

CW25590070
Category

MOSFET, MOSFET Transistor
Package

DFN-8
Description

DFN-A N-CH 30V 12A
Documentation

Datasheet
Ships from

Moscow
Наличие

1824 pcs In Stock
Estimated Price

$ 0.08

Buy AON7506

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AON7506 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AON7506 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AON7506
Manufacturer	Alpha & Omega Semiconductor
ChipWorker Part#	CW25590070
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	DFN-8
Power Rating	8 W
Polarity	N-CH
Power Dissipation	3.1W (Ta), 20.5W (Tc)
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	12A
Rise Time	3.5 ns
Input Capacitance (Ciss)	542pF @15V(Vds)
Input Power (Max)	3.1 W
Fall Time	3 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	3.1W (Ta), 20.5W (Tc)
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

Product Description

General Description
• Latest Trench Power AlphaMOS (αMOS LV) technology
• Very Low RDS(ON) at 4.5V VGS
• Low Gate Charge
• High Current Capability
• RoHS and Halogen-Free Compliant
Product Summary
VDS 30V
ID (at VGS=10V) 12A
RDS(ON) (at VGS=10V) < 9.8mΩ
RDS(ON) (at VGS=4.5V) < 15.8 mΩ
100% UIS Tested
100% Rg Tested
Application
• DC/DC Converters in Computing, Servers, and POL
• Isolated DC/DC Converters in Telecom and Industrial
