LD1117S33CTR ,Voltage Regulator - ST Microelectronics

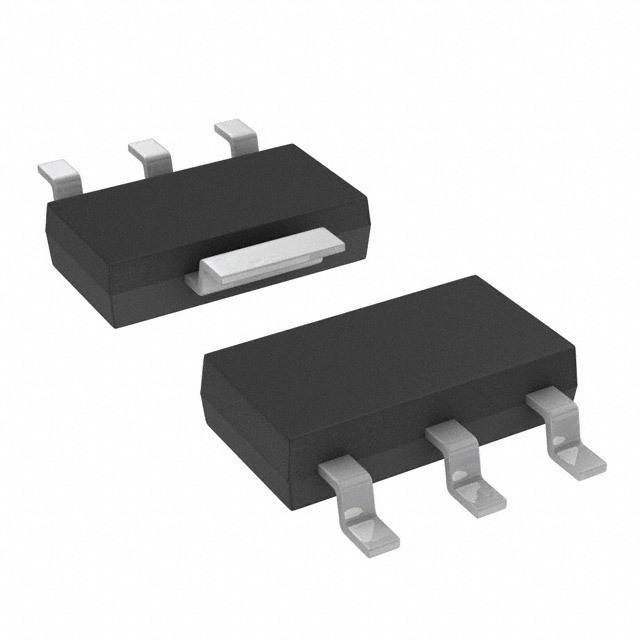

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

346 points

Part No

LD1117S33CTR
Manufacturer

ST Microelectronics
ChipWorker Part#

CW24447
Category

Voltage Regulator
Package

TO-261-4
Description

Fixed LDO Voltage Regulator, 5.3V to 15V, 1.1V Dropout, 3.3Vout, 950mAout, SOT-223-4
Documentation

Datasheet
Ships from

Moscow
Наличие

43454 pcs In Stock
Estimated Price

$ 0.06

Buy LD1117S33CTR

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

LD1117S33CTR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

LD1117S33CTR Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	LD1117S33CTR
Manufacturer	ST Microelectronics
ChipWorker Part#	CW24447
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Supply Voltage (DC)	15.0V (max)
Operating Voltage	0V ~ 15V
Number of Outputs	1 Output
Input Voltage (DC)	10.0V (max)
Output Voltage	3.3 V
Output Current	800 mA
Number of Positions	4 Position
Power Dissipation	12 W
Quiescent Current	5 mA
voltage rating	1.1 V
Input Voltage (Max)	15 V
Input Voltage (Min)	5.3 V
Output Voltage (Min)	3.3 V
Output Current (Max)	1.3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	12000 mW
Accuracy	±1 %
Input Voltage	15 V
	expand all
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.8 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

LM1084IT-3.3

National Semiconductor

Product Description

The LD1117S33CTR is a low drop voltage regulator able to provide up to 800mA of output current, available even in adjustable version (VREF = 1.25V). The LD1117S33CTR offers an output voltage of 3.3V. The LD1117S33CTR optimises the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor. In fact in this case, the quiescent current flows mostly into the load. Only a very common 10µF minimum capacitor is needed for stability. On chip trimming allows the regulator to reach a very tight output voltage tolerance, within ± 1 % at 25°C.
Low dropout voltage: 1V typ.
Output current up to 800mA
Fixed output voltage of 3.3V
Internal current and thermal limit
Supply voltage rejection: 75dB typ.
Embossed Tape Packaging
