484040003 - Molex

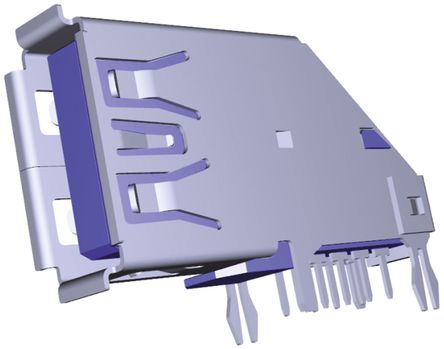

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

484040003
Manufacturer

Molex
ChipWorker Part#

CW3736996
Category

Audio Connector
Description

Conn USB Type A F 9POS 2mm/2.5mm Solder RA Thru-Hole 9 Terminal 1Port Embossed T/R
Documentation

Datasheet

484040003 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

484040003 Specifications

Attribute	Attribute Value

Part Number	484040003
Manufacturer	Molex
ChipWorker Part#	CW3736996
Category	Audio Connector
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	9 Pin
Number of Contacts	9 Contact
Gender	Female
Contact Plating	Gold
Current Rating	1.80 A
Number of Rows	02 Row
Halogen Free Status	Low Halogen
Orientation	Vertical
Number of Circuits	9 Circuit
Current Rating (Max)	1.8A/触头
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-20 ℃
Voltage Rating	30 V
	expand all
Size-Width	25.7 mm
Size-Height	14.7 mm
Contact Material	Copper Alloy
Operating Temperature	-20℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
