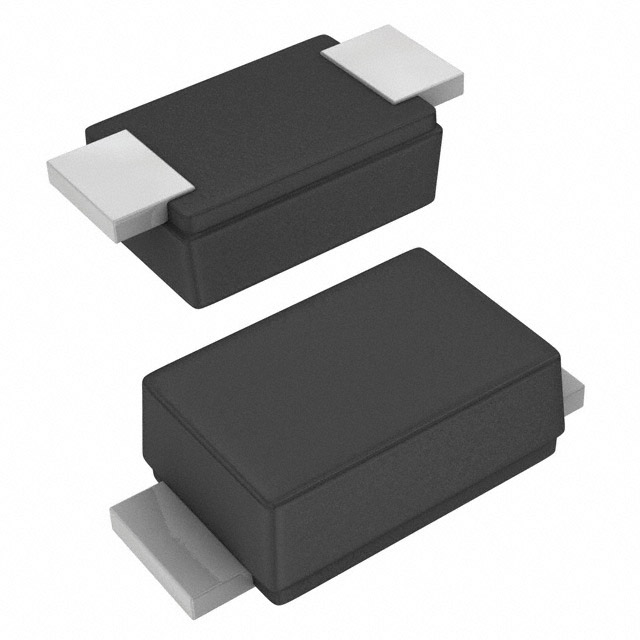

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SMF54A
Manufacturer

Littelfuse
ChipWorker Part#

CW22526400
Category

TVS Diode
Package

SOD-123-2
Description

Diode TVS Single Uni-Dir 54V 200W 2Pin SOD-123F T/R
Documentation

Datasheet

SMF54A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SMF54A Specifications

Attribute	Attribute Value

Part Number	SMF54A
Manufacturer	Littelfuse
ChipWorker Part#	CW22526400
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123-2
Breakdown Voltage	66.3 V
Number of Positions	2 Position
Power Dissipation	200 W
Clamping Voltage	87.1 V
Test Current	1 mA
Max Breakdown Voltage	66.3 V
Peak Pulse Power	200 W
Min Breakdown Voltage	60 V
Reverse Breakdown Voltage	60 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-65℃ ~ 150℃
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Protect your critical electronic applications from sudden overvoltage conditions with this SMF54A TVS diode from Littelfuse. Its test current is 1 mA. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 200 W. This device"s maximum clamping voltage is 87.1 V and minimum breakdown voltage is 60 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.
