53020C - muRata

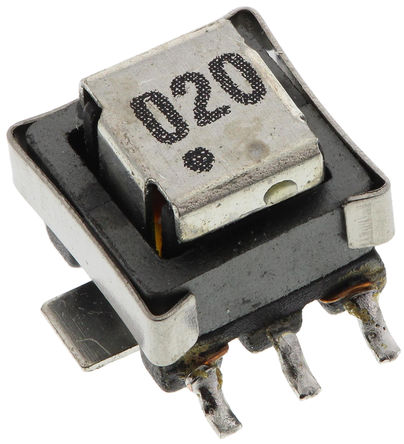

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

53020C
Manufacturer

muRata
ChipWorker Part#

CW45844800
Description

Current Transformer 1:20 500Vrms 0.007Ω Prim. DCR 0.55Ω Sec. DCR 10000mA Prim. 6Term. Gull Wing SMD
Documentation

Datasheet

53020C Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

53020C Specifications

Attribute	Attribute Value

Part Number	53020C
Manufacturer	muRata
ChipWorker Part#	CW45844800
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Frequency	50kHz ~ 500kHz
Inductance	80 μH
Input Current	10 A
Isolation Voltage	500 VAC
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	8.3 mm
Size-Width	7.2 mm
Size-Height	5.4 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

53020C is manufactured by Murata Power and is categorized in the Current Sense Transformers category. 53020C is described as XFRMR CURR SENSE 10A 1:20 SMD. Perfect Parts is a supplier of Transformers and other Miscellaneous.
