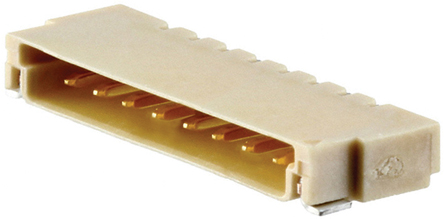

532610871 ,Header, Receptacle - Molex

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

161 points

Part No

532610871
Manufacturer

Molex
ChipWorker Part#

CW4224908
Category

Header, Receptacle
Package

SMD
Description

Socket; wire-board; male; PIN:8; 1.25mm; SMT; PicoBlade; 1A; tinned
Documentation

Datasheet
Ships from

Moscow
Наличие

4725 pcs In Stock
Estimated Price

$ 0.13

Buy 532610871

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

532610871 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

532610871 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	532610871
Manufacturer	Molex
ChipWorker Part#	CW4224908
Category	Header, Receptacle
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SMD
Pin Pitch	1.25 mm
Number of Contacts	8 Contact
Gender	Male
Contact Plating	Tin
Voltage Rating (DC)	125 V
Voltage Rating (AC)	125 V
Current Rating	1.00 A
Insulation Resistance	100 MΩ
Number of Rows	01 Row
Glow Wire Compliant	Non-Compliant
Halogen Free Status	Not Low Halogen
Orientation	Right Angle
Number of Circuits	8 Circuit
Flammability Rating	UL 94 V-0
Number of Positions	8 Position
Current Rating (Max)	1A/触头
Voltage Rating	125 V
Maximum Contact Resistance (Max)	20 mΩ
	expand all
Size-Length	15.2 mm
Size-Width	4.20 mm
Size-Height	3.4 mm
Mated Height	3.40 mm
Housing Color	Natural
Color	Beige
Contact Material	Phosphor Bronze
Housing Material	Nylon
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

125SH-B-08-TS-SMT-T/R
