5KP43CA ,TVS Diode - Littelfuse

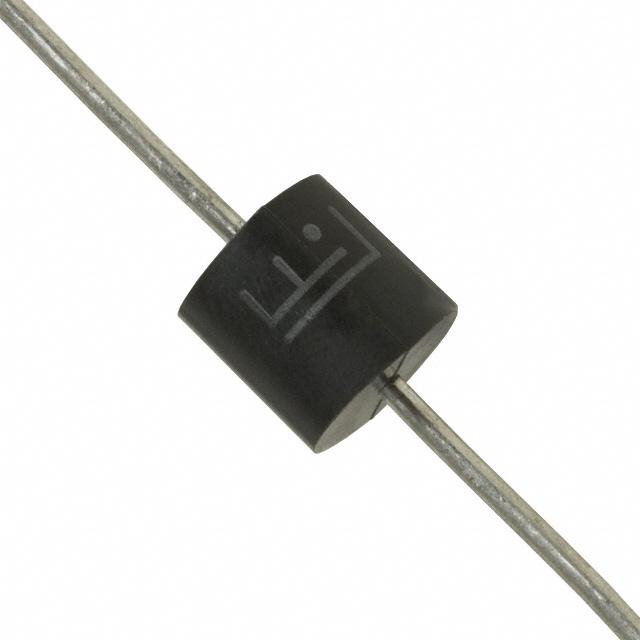

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

131 points

Part No

5KP43CA
Manufacturer

Littelfuse
ChipWorker Part#

CW17113282
Category

TVS Diode
Package

P-600
Description

LITTELFUSE 5KP43CA TVS Diode, 5KP Series, Bidirectional, 43V, 69.4V, P600, 2Pins
Documentation

Datasheet
Ships from

Moscow
Наличие

104432 pcs In Stock
Estimated Price

$ 1.02

Buy 5KP43CA

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

5KP43CA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

5KP43CA Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	5KP43CA
Manufacturer	Littelfuse
ChipWorker Part#	CW17113282
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	P-600
Voltage Rating (DC)	43.0 V
Power Rating	5.00 kW
Breakdown Voltage	47.8 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	8 W
Clamping Voltage	69.4 V
Test Current	5 mA
Max Breakdown Voltage	52.8 V
Peak Pulse Power	5000 W
Min Breakdown Voltage	47.8 V
Reverse Breakdown Voltage	47.8 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 175℃
	expand all
Size-Length	9.1 mm
Size-Diameter	9.10 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The 5KP series Transient Voltage Suppression Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits.
5000W Peak pulse power capability at 10x1000µs waveform
Glass passivated junction
Excellent clamping capability
Low incremental surge resistance
0.01% Repetition rate (duty cycle)
<2µA when VBR minimum >12V IR
ESD protection of data lines in accordance with IEC 61000-4-2
EFT protection of data lines in accordance with IEC 61000-4-4
Available in unidirectional and bidirectional
-55 to 175°C Operating junction temperature range
